Double Twin Grip - 77
Product Code - 67090
Catalogues
1. 2025 Lang Catalogue2. 2025 Lang Speciality Products
3. Lang MakroGrip Ultra
4. Lang 2023 New Products
5. Zero-Point Clamping
6. Automation
7. Lang Workholding
8. LANG Aero & RoboTrex Compact.
9. Lang - Technique de serrage
10. 2017 LANG Workholding
11. Lang - Automatisation
12. Lang - Système Point Zéro
Key data at a glance
Ideal for batch production of small parts - Up to 4 parts in one clamping!
Exchange the middle jaws with the included centre pieces and get a dual clamping vice with an increased clamping range up to 200 mm!
Further Information
- Increased clamping range due to patented reversible jaws.
- Light-weight aluminum base body with integrated adapt

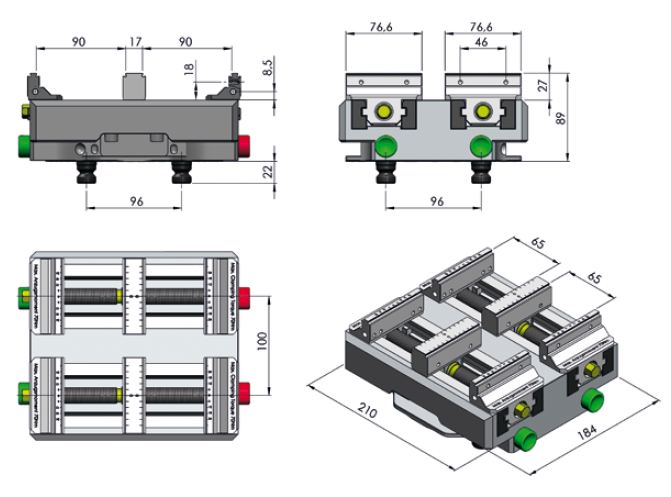

Total Length
210 mm (8.26") + Bump stops.
Height
89 mm (3.5")
Clamping Range
4 mm - 90 mm (0.15" - 3.5")
Weight
9.8 kg (21.6 lbs)
Material
Aluminium
