Key data at a glance

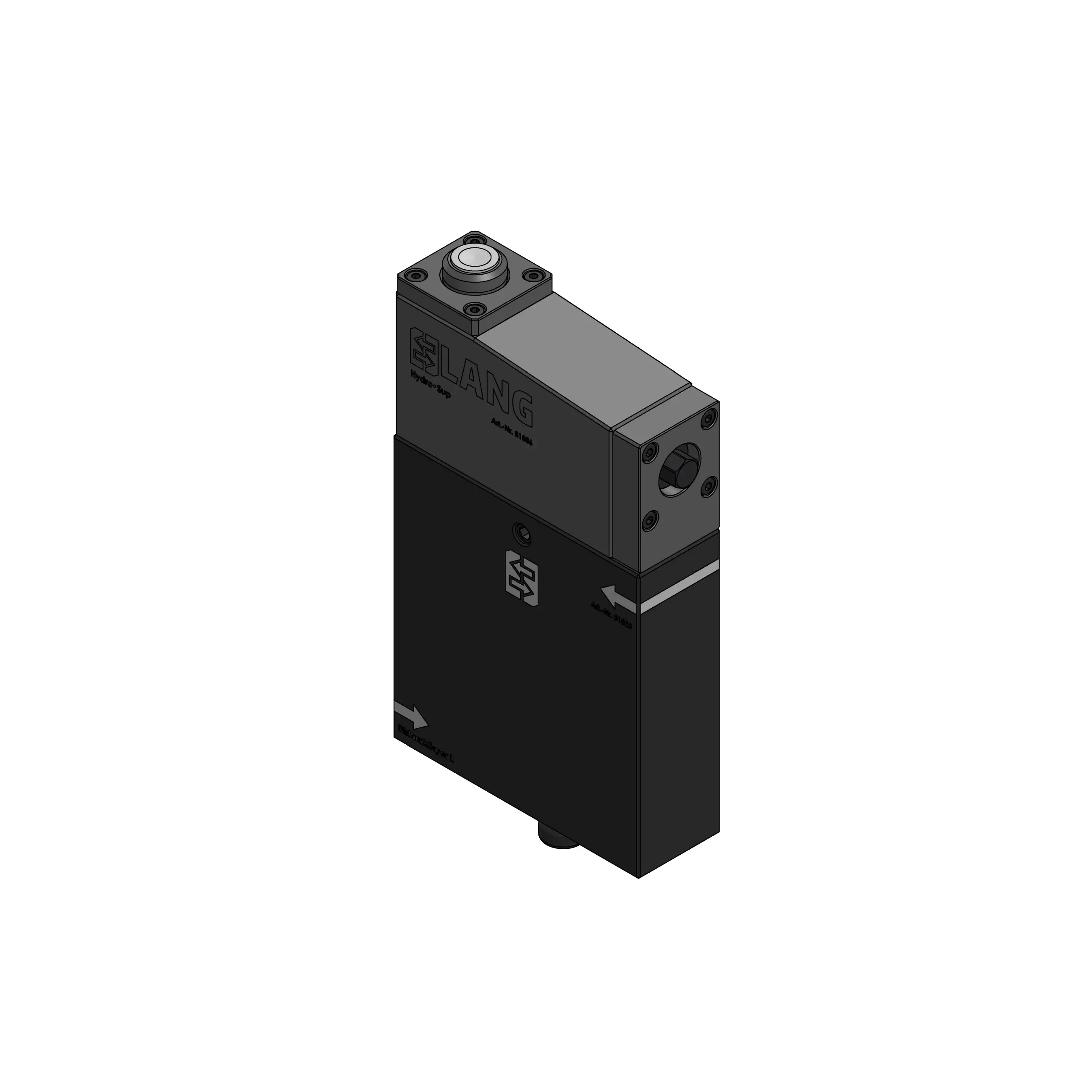

This spacer, in conjunction with the Hydro•Sup hydraulic screw jack, provides an additional support surface at a height of between 228 and 232 mm and is, therefore, suitable for the “L” system height of Makro•Grip® Ultra. Together with the Hydro•Sup, it serves to reduce possible vibrations in the machining process of protruding components.
Further Information
FOR SUPPORT HEIGHT

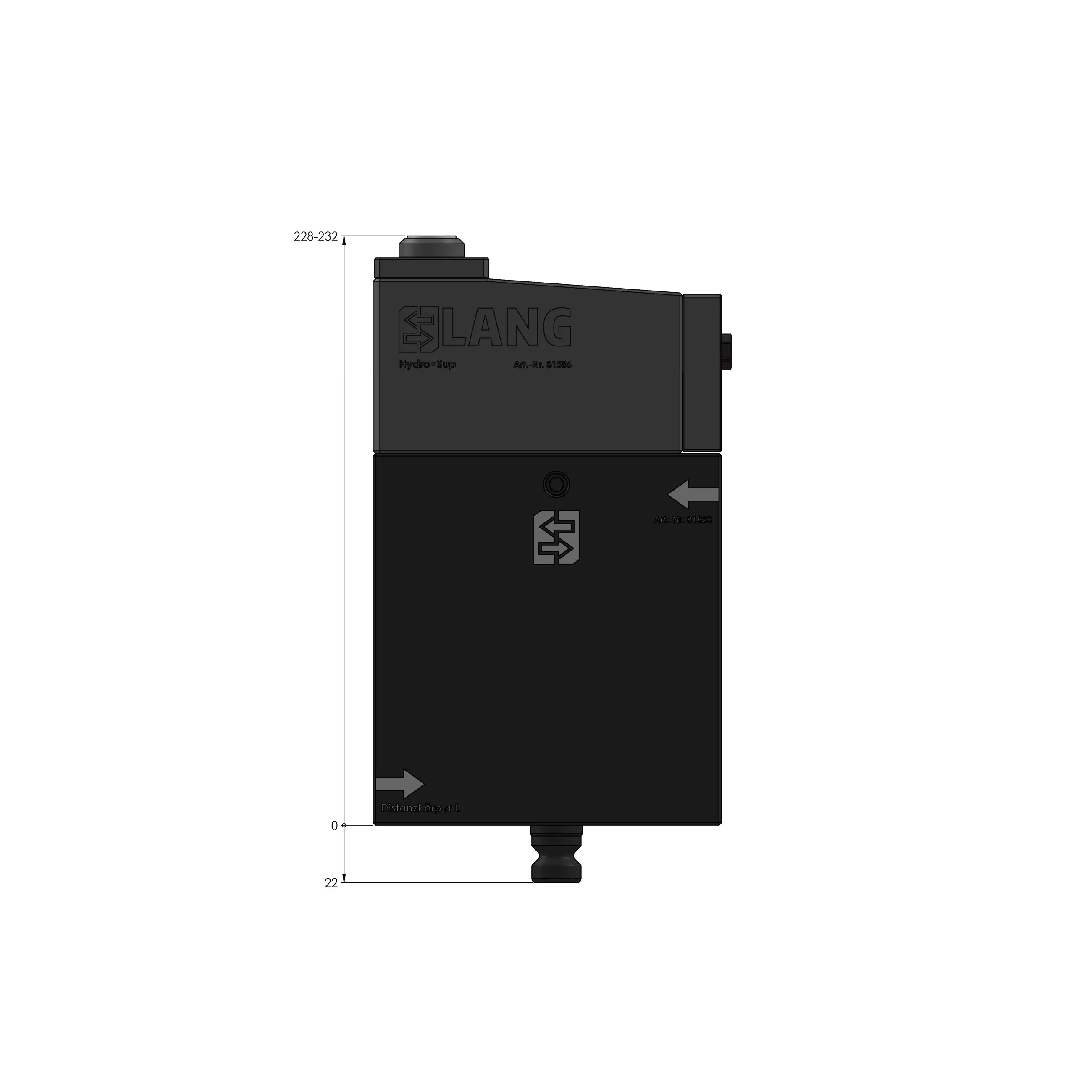

228 - 232 mm (8.98" - 9.13")
PACKAGING UNIT
1 Set
WEIGHT
6.6 kg (14.55 lbs)
MATERIAL
Steel
Notice:
-
Scope of delivery:
Hydro•Sup Screw Jack
The hydraulic screw jack Hydro•Sup can be clamped with its clamping stud in the zero-point system as a support when clamping protruding workpieces. The screw jack helps to reduce possible vibrations during the machining process, especially of thin sheet material, which results in a higher surface quality of the manufactured parts.
Quality of manufactured parts
As a support Hydro•Sup reduces possible vibrations during the machining process.
Modularity
By the addition of two different spacers which can be mounted to the screw jack, all Makro•Grip® Ultra system heights can be copied.
Application diversity
Not only applicable for Makro•Grip® Ultra, but also for Makro•Grip® 5-Axis Vises 125 when clamping protruding workpieces.
