Key data at a glance
These parallels with a thickness of 8 mm are especially suitable for pre-stamping large workpieces with the Makro-Grip® Ultra stamping unit. The clamping depth is 3 mm (suitable for clamping jaws with item no. 81483).
Further Information

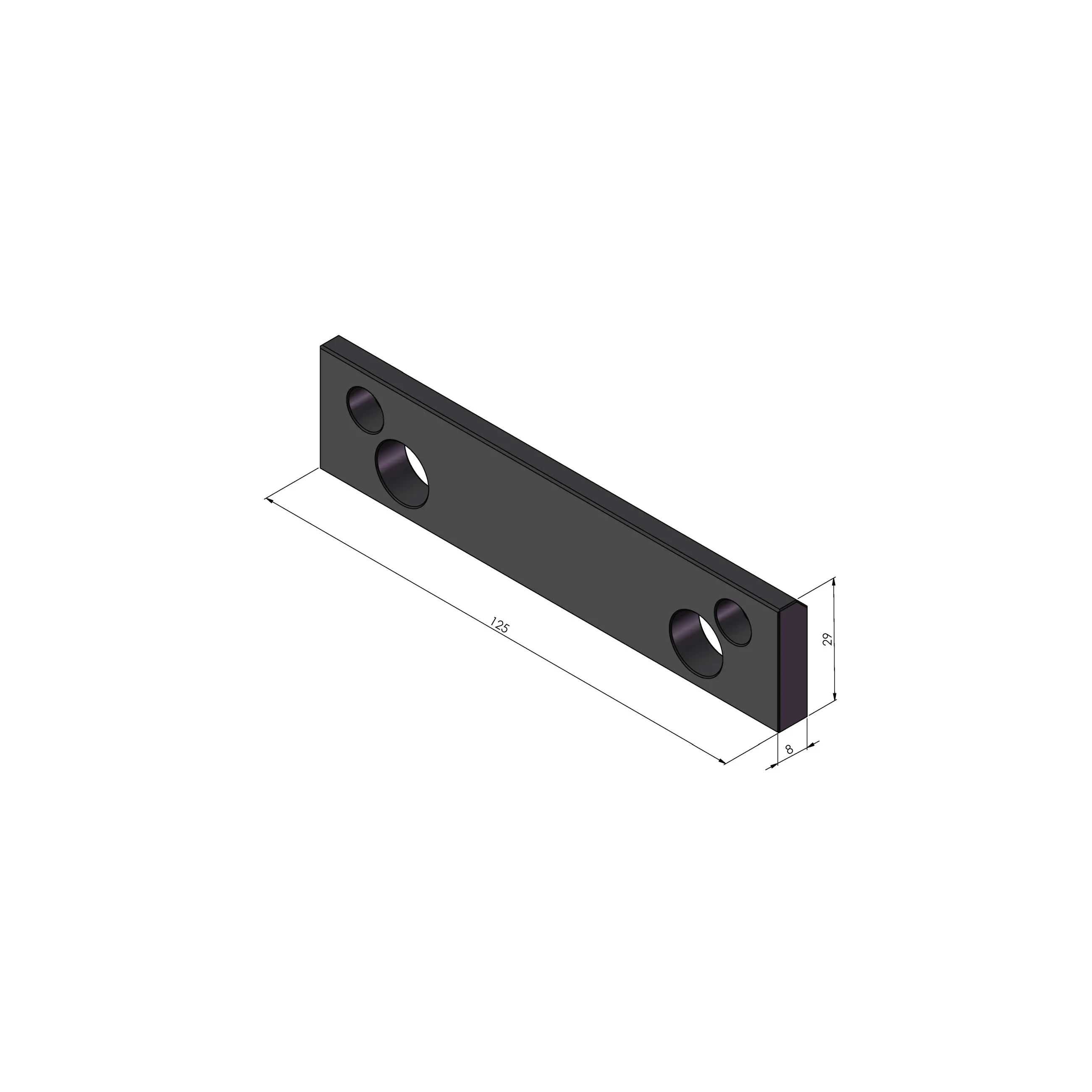

DIMENSIONS
125 x 8 x 29 mm (4.92" x 0.31" x 1.14")
THICKNESS
8 mm (0.31")
FOR MATERIALS
up to 45 HRC
PACKAGING UNIT
1
WEIGHT
0.4 kg (0.88 lbs)
MATERIAL
Steel
Notice:
-
Scope of delivery:
Makro•Grip® Ultra
Makro•Grip® Ultra offers countless clamping possibilities and is perfectly fitted for machining applications of flat or large parts and also mould making. Thanks to its expandability and different jaw types, the modular clamping system practically covers any imaginable machining application.
Modularity
Changeover of clamping configuration within seconds through expansion of clamping ranges and exchange of clamping jaws
Application diversity
Equally applicable for single part or multiple clamping, cubic, round our asymmetric workpieces
Centric clamping of large components
Possibility of clamping workpieces of 800 mm or even larger
