Key data at a glance

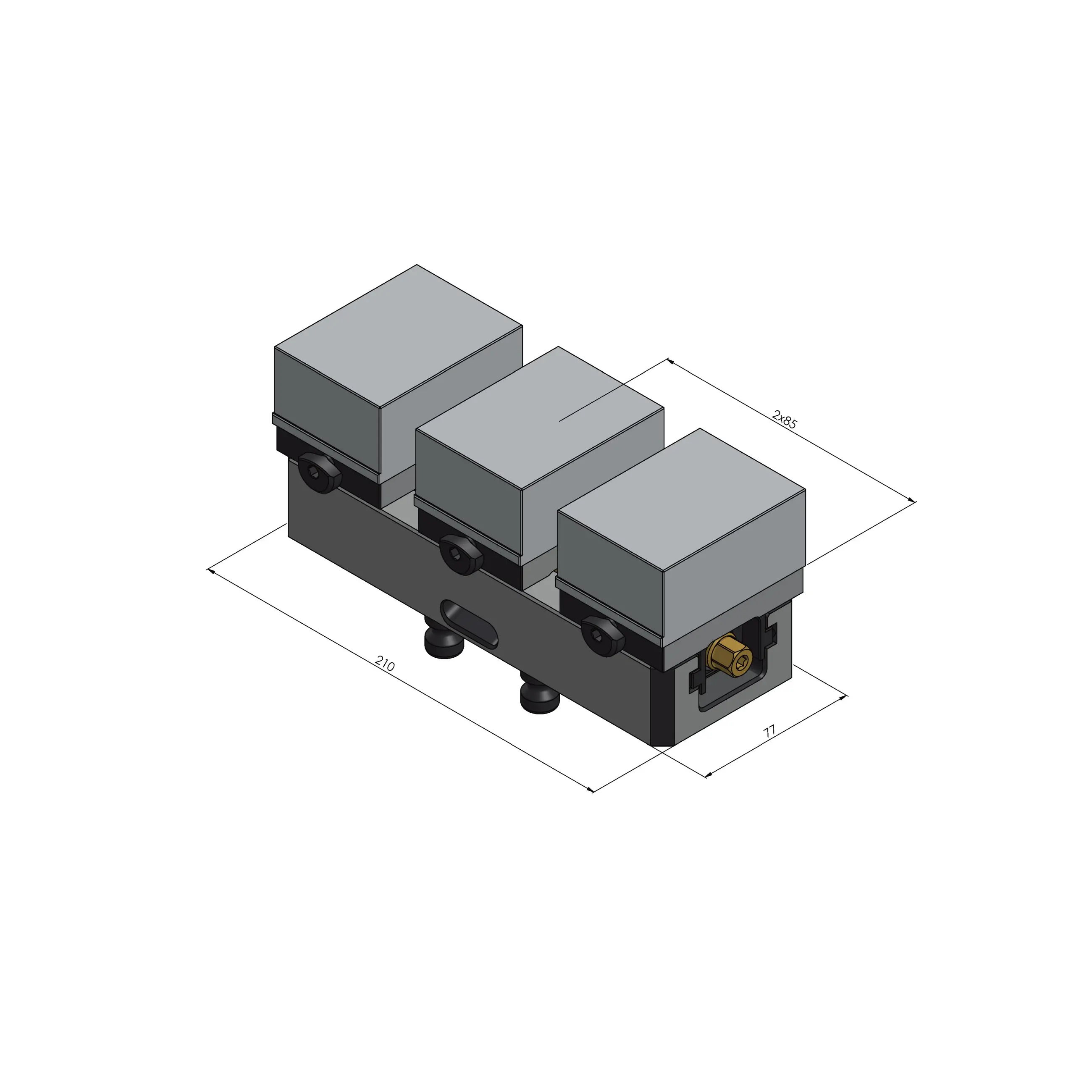

If required, the Avanti vise can be converted into a multiple clamp. During the conversion, which can be carried out in a few moments, only the set of spindle + center piece from the contour clamp has to be replaced by the center base jaw + spindle. For (multiple) workpiece clamping, the same top jaw as for the base jaws is mounted on the center base jaw.
Further Information
SPINDLE LENGTH
215 mm (8.46")
THREAD PITCH
M16 x 1.5
DIMENSIONS
Jaw width: 77 mm (3.03")
WORKPIECE SHAPE
cubic / cylindrical / asymmetric
PACKAGING UNIT
1 Pack
WEIGHT
0.97 kg (2.14 lbs)
MATERIAL
Steel
Notice:
-
Scope of delivery:
Benefits Avanti
Quick jaw exchange
Jaw exchange in just a few seconds with just one screw
Cost benefits
Extremely affordable top jaws available in different heights and materials
Accuracy
Highly precise positioning of the top jaws thanks to the patented interface
Conventional Workholding
„Conventional Workholding“ offers a multitude of options for clamping round or pre-machined parts. To solve the respective clamping task, the operator can choose between a 6-jaw chuck, two collet chucks and three different types of self-centering vises, whose jaw types are perfectly suited for challenging 2nd operations.
