Key data at a glance

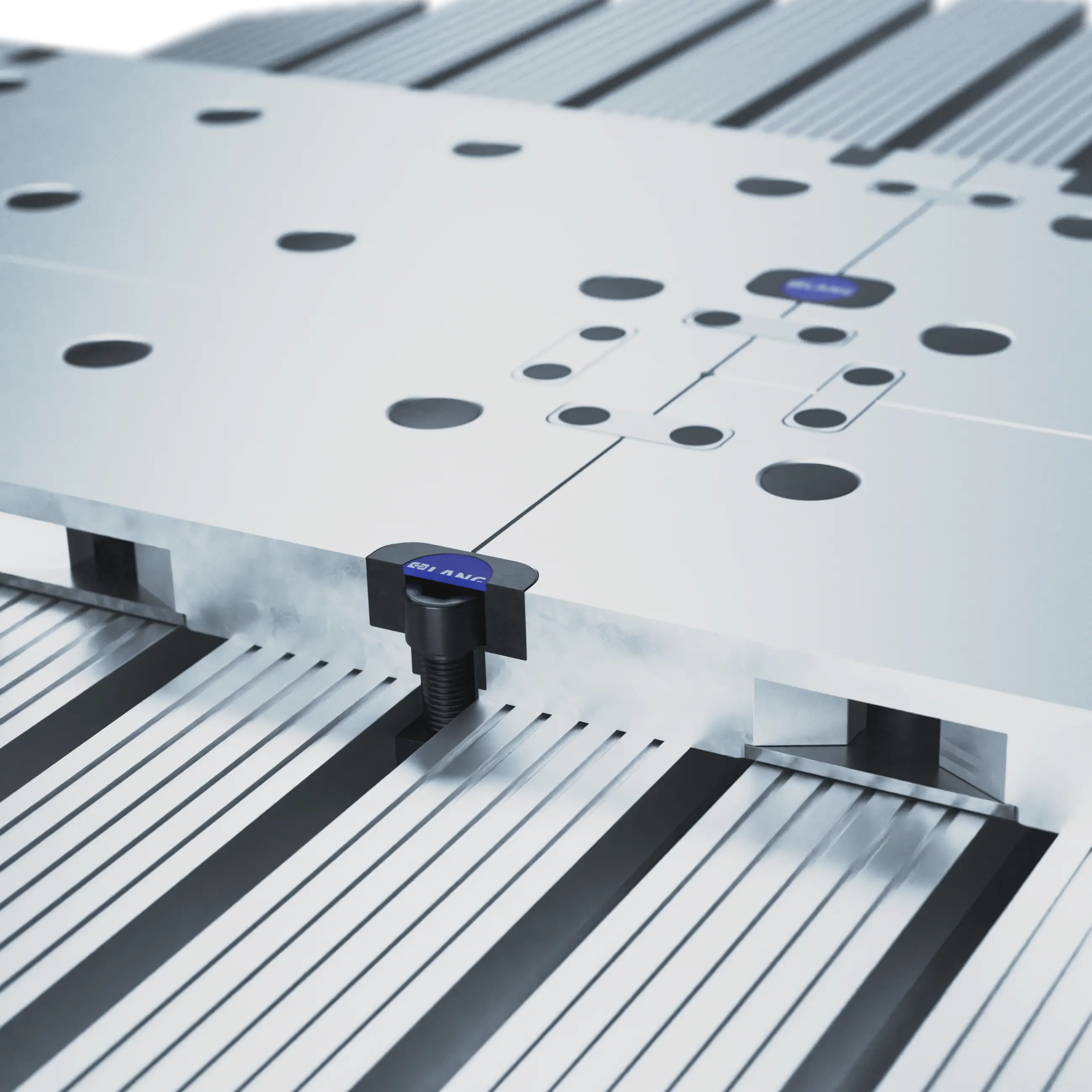

Alignment claws are used for the simultaneous fastening and alignment of Quick•Point® zero point plates lined up next to each other. They can be used when two zero point plates are positioned on the machine table in such a way that they are directly next to each other above a table groove and fastening holes in this area appear to make sense. For this purpose, a corresponding hole must be made across the plate, into which the alignment claw is inserted and fastened with a cylinder head screw countersunk in it and a T-slot nut.
