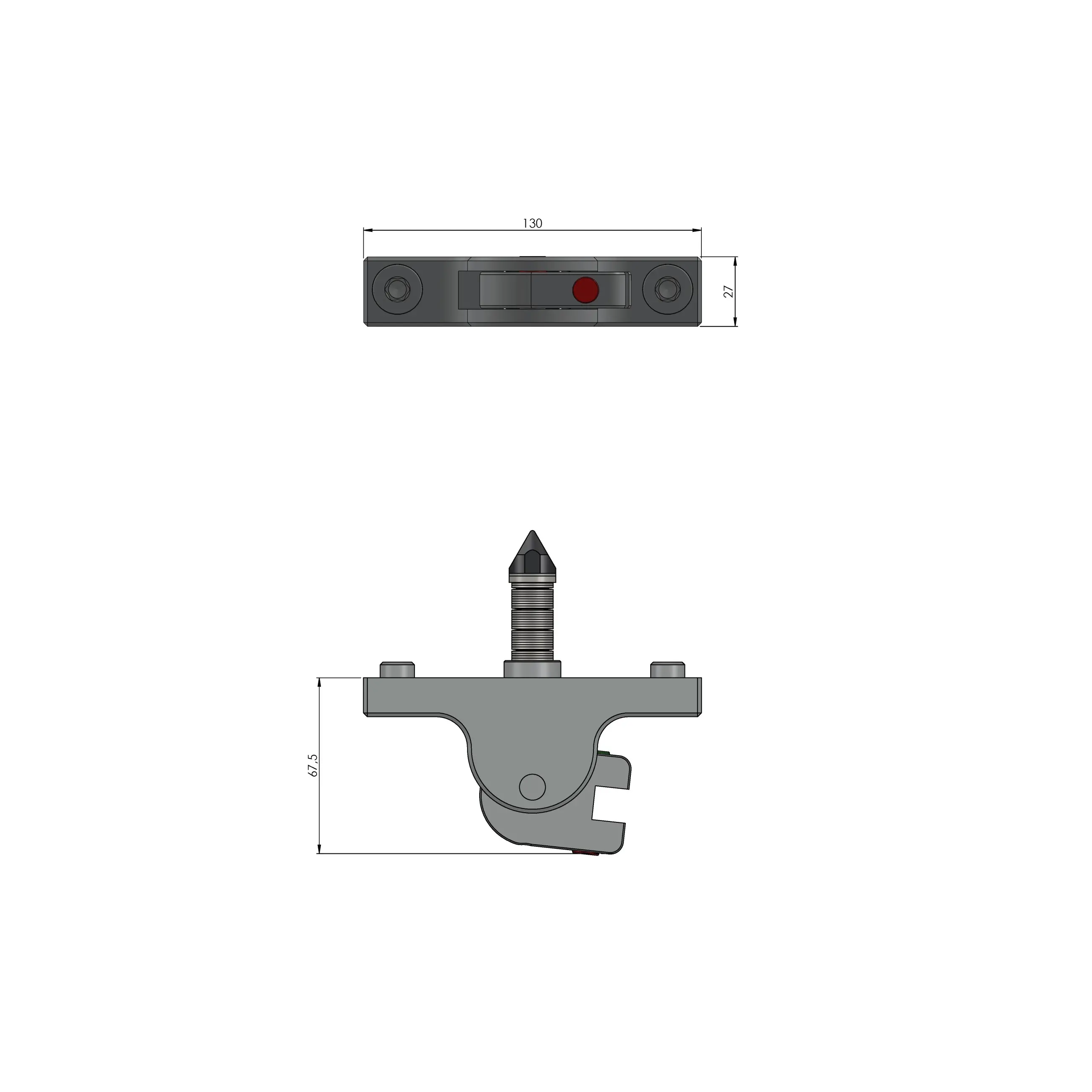

As an alternative to the actuation screw, the 2-fold grid plate 52 can be conveniently operated with the Quick-Lock fastener. With a 180° closing movement of the Quick•Lock lever, the clamping effect of a clamping device in the zero•point clamping system is established and released, with identical clamping and holding forces as when actuated via the screw.
Further Information
WEIGHT
1.3 kg (2.87 lbs)
MATERIAL
Steel
Notice:
-
Scope of delivery:
Benefits Quick•Point® Quick•Lock
Ease of operation
Facilitates the clamping process with rectangular zero-point plates
Quickness
Simple 180° motion of the Quick•Lock lever
Flexibility
Can be attached to or removed from a zero-point plate at any time
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
Flexibility
Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation
The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity
Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
