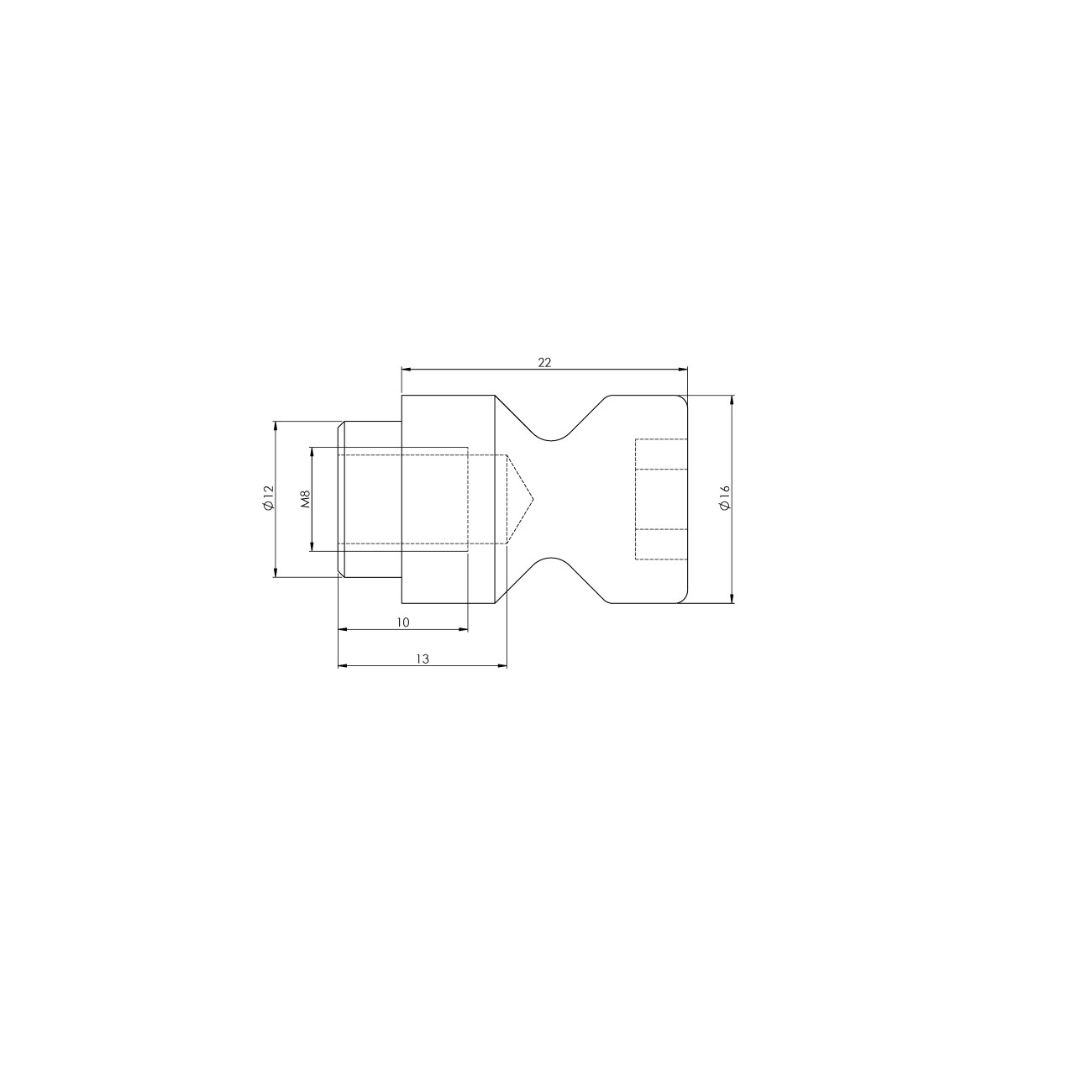

Quick•Point® 52, Clamping Studs ø 16 mm, for 52 mm bolt distance. Single Stud.
Product Code - 45270
Key data at a glance
Notice: The clamping studs are not sold in a set of 4, but as single studs.
Clamping studs are the connecting element between the zero-point clamping system and the clamping device and are mounted in all LANG vises, Quick•Point® risers and clamping towers, among others. In combination with the zero-point holes, they guarantee highly accurate positioning and a fast set-up process. They also allow the direct clamping of workpieces, fixtures or conventional vises.
Further Information
Scope of delivery: 1 x Clamping stud
1 x Threaded pin M8
Diameter
16 mm (0.63")
For Grid Size
52 mm
Threaded Pin
M8
Weight
0.03kg (0.07 lbs)
Material
Steel
Holding Capacity
1000kg (2205 lbs)
Benefits Quick•Point® Clamping Studs
Direct clamping

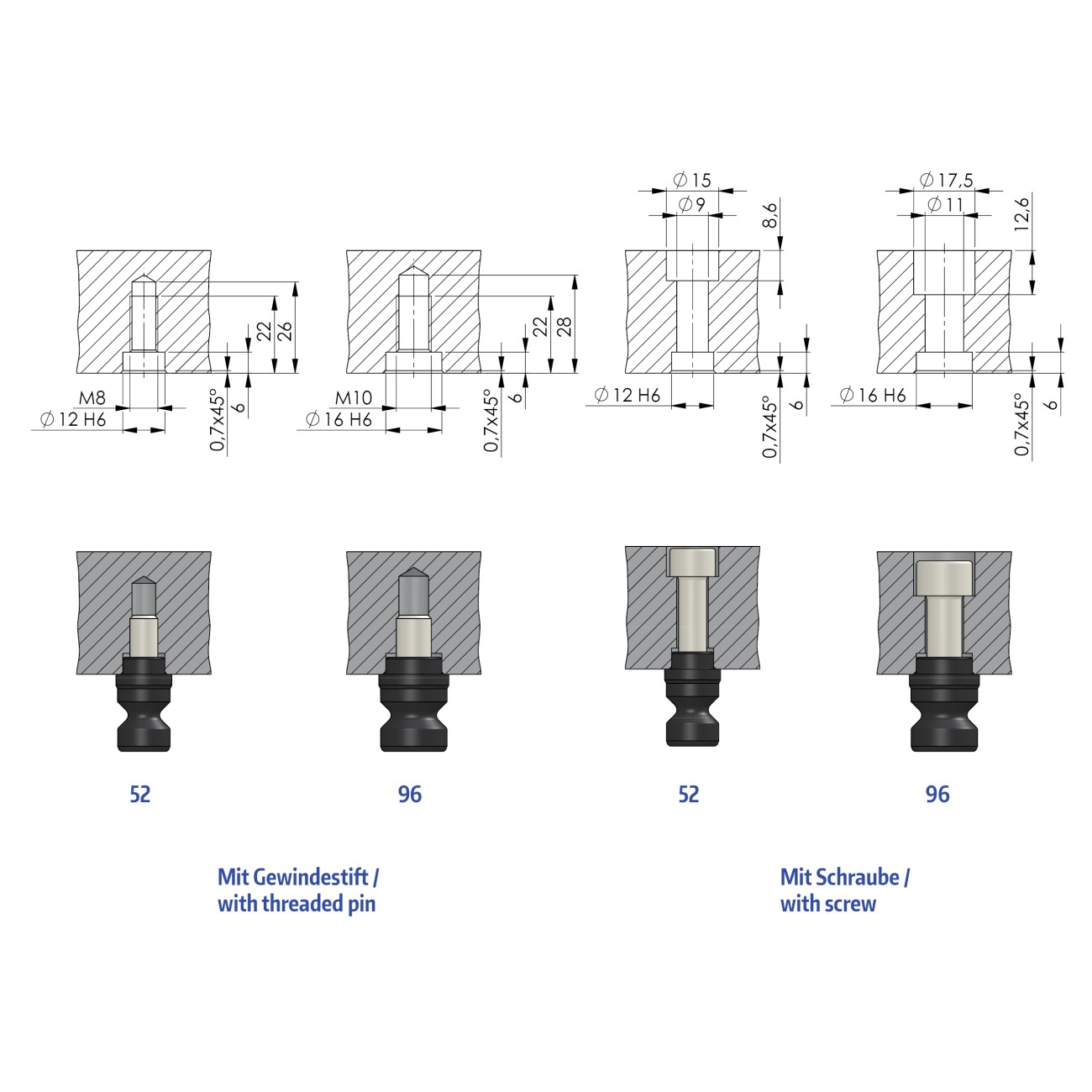

When mounted to the material, clamping studs allow direct clamping in the zero-point system
Versatility
Also applicable with other fixtures or vises
Precision
Clamping studs and zero-point bores provide a highly precise fit
