Key data at a glance

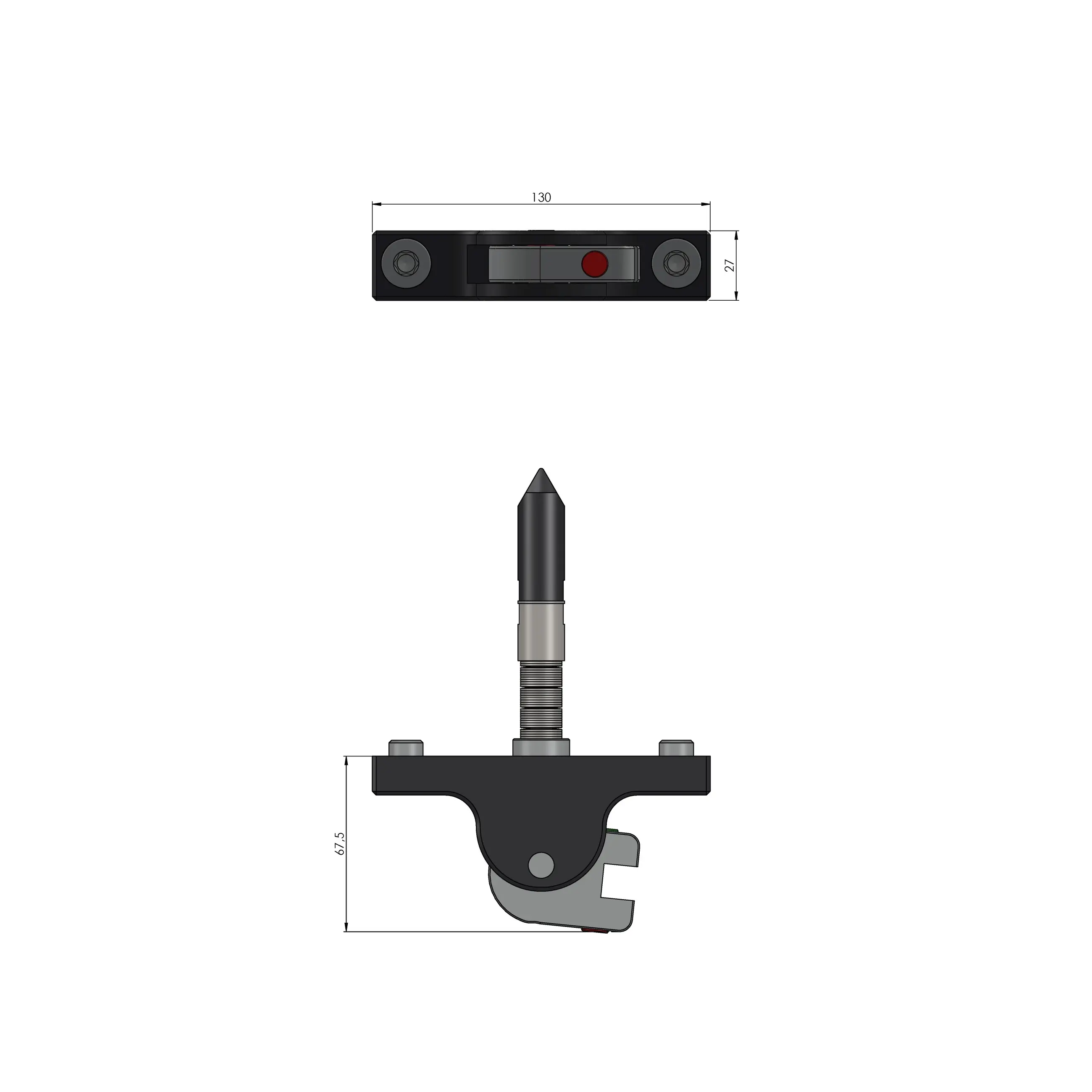

As an alternative to the actuation screw, the 4-fold grid plate 52 can be conveniently operated with the Quick•Lock fastener. With a 180° closing movement of the Quick•Lock lever, the clamping effect of a clamping device in the zero-point clamping system is established and released, with identical clamping and holding forces as when actuated via the screw.
Further Information
WEIGHT
1.5 kg (3.31 lbs)
MATERIAL
Steel
Notice:
-
Scope of delivery:
Benefits Quick•Point® Quick•Lock
Ease of operation
Facilitates the clamping process with rectangular zero-point plates
Quickness
Simple 180° motion of the Quick•Lock lever
Flexibility
Can be attached to or removed from a zero-point plate at any time
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
