Quick•Point® 96, Clamping Stud ø 20 mm, for 96 mm bolt distance. Single Stud.
Product Code - 45570
Key data at a glance
Notice: The clamping studs are not sold in a set of 4, but as single studs.
Clamping studs are the connecting element between the zero-point clamping system and the clamping device and are mounted in all LANG vises, Quick•Point® risers and clamping towers, among others. In combination with the zero-point holes, they guarantee highly accurate positioning and a fast set-up process. They also allow the direct clamping of workpieces, fixtures or conventional vises.
Further Information
Scope of delivery: 1 x Clamping stud
1 x Threaded pin M 10

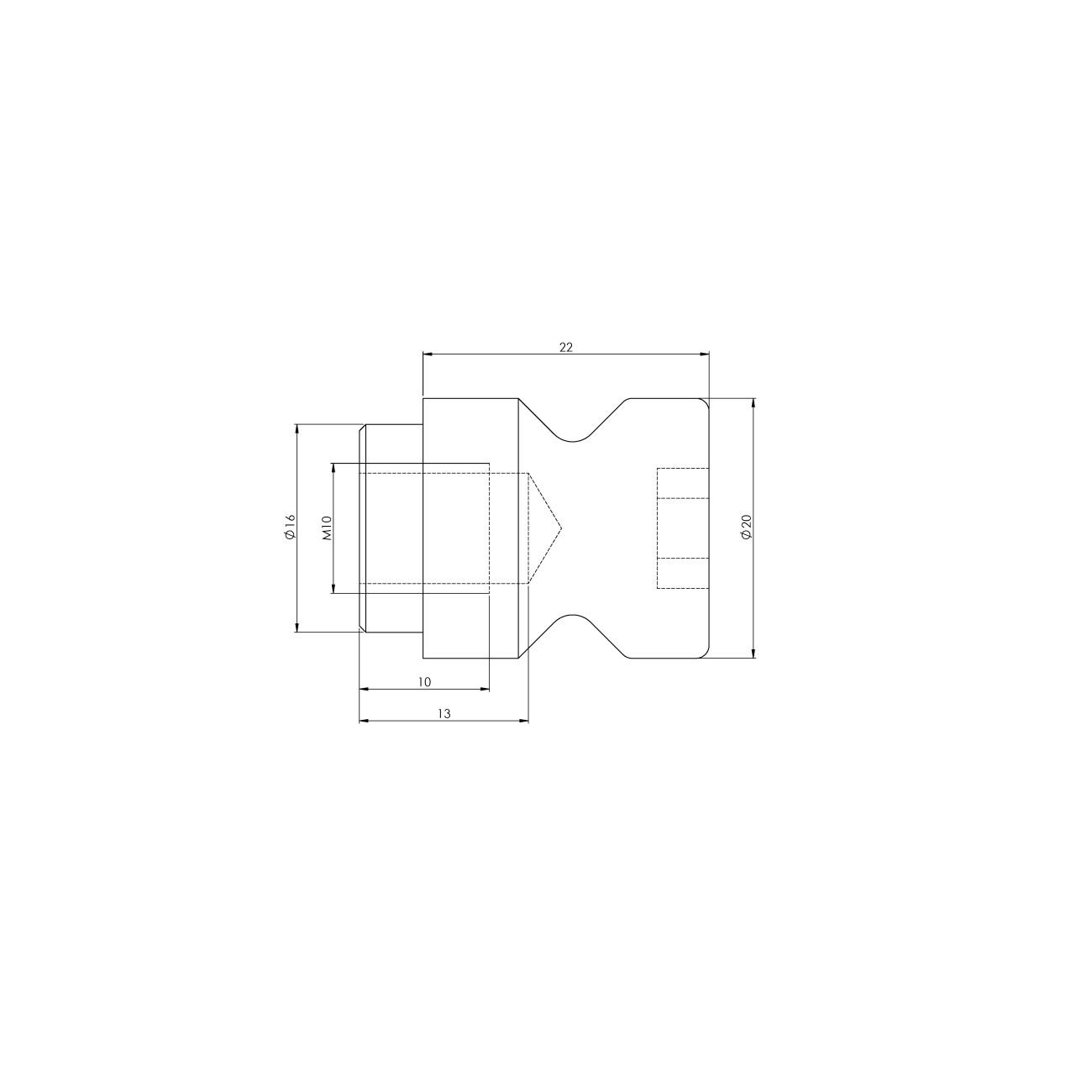

Diameter
20 mm (0.79")
For Grid Size
96 mm
Threaded Pin
M10
Weight
0.05 kg (0.11 lbs)
Material
Steel
Holding Capacity
1500 kg (3307 lbs)
Benefits Quick•Point® Clamping Studs
Direct clamping

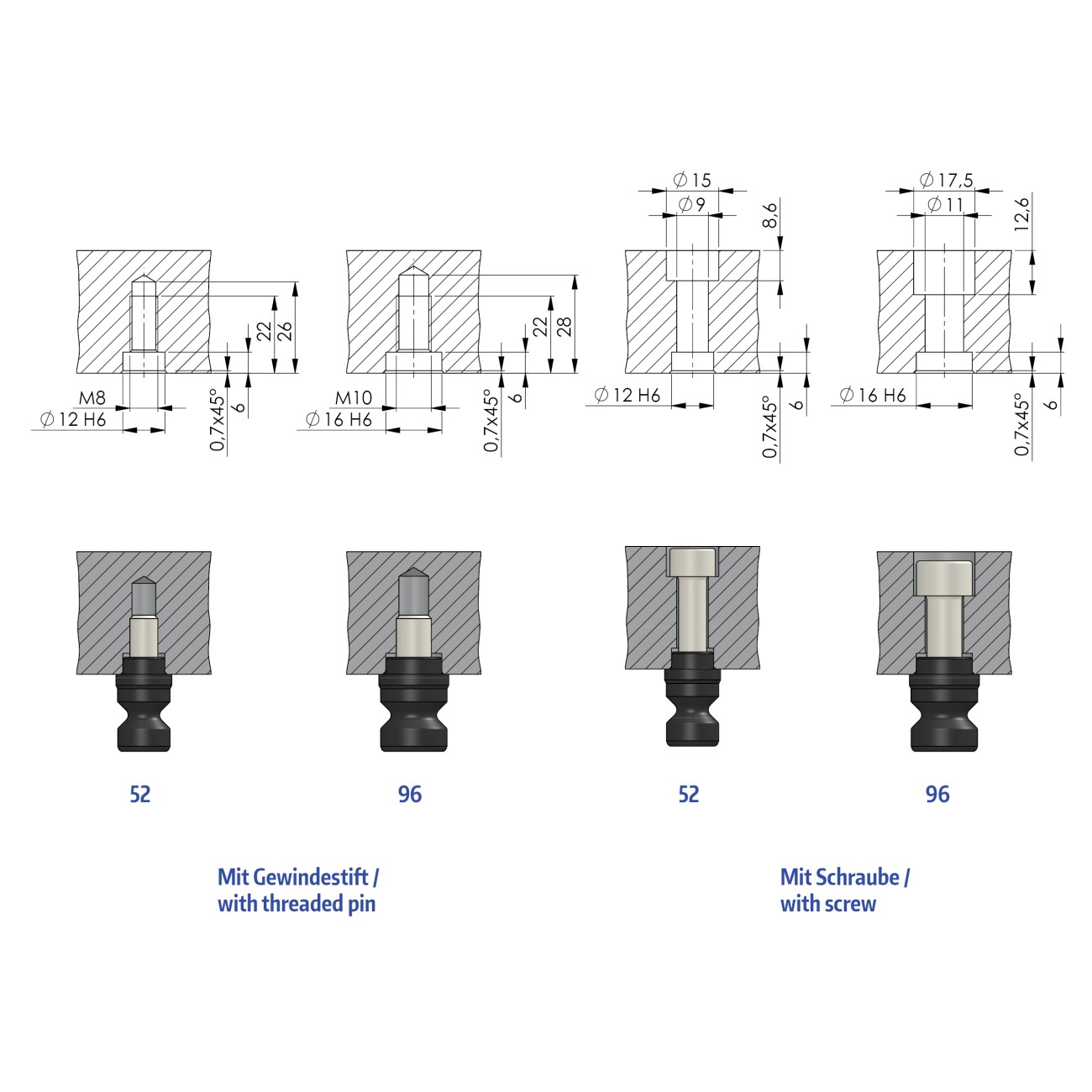

When mounted to the material, clamping studs allow direct clamping in the zero-point system
Versatility
Also applicable with other fixtures or vises
Precision
Clamping studs and zero-point bores provide a highly precise fit
