Key data at a glance

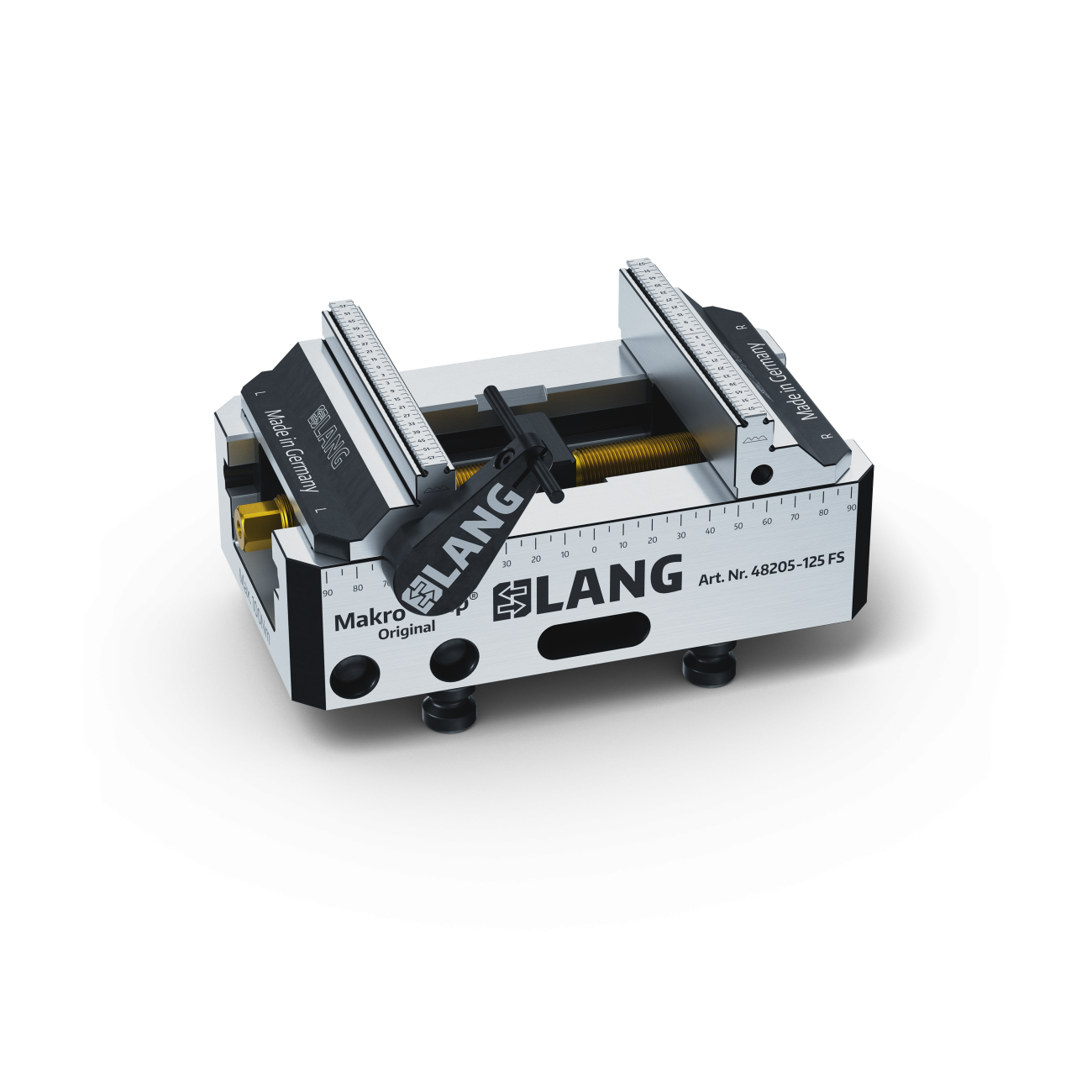

The magnetic workpiece end stop is a simple but practical tool for positioning workpieces in a vise, especially in second clamping operations where serrated clamping jaws are not used. Due to its quick and easy disassembly, the end stop can be removed again after positioning and fixing the workpiece for machining to maintain complete accessibility.
Further Information
Packaging Unit
1 Piece.
Weight
0.08 Kg (0.18 lbs)
Material
Aluminum
Scope of delivery:
Makro•Grip® Stamping Technology and Raw Part Clamping
The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Its compact design and high holding forces make the Makro•Grip® 5-Axis Vise the ideal clamping device for machining raw parts.
Holding force
Thanks to the form-fit clamping principle, highest holding forces can be achieved with Makro•Grip®, even at low clamping pressure.
Process reliability
Clamping with Makro•Grip® provides maximum process reliability and is easy on the workpiece to be processes at the same time.
Accessibility
The compact Makro•Grip® self-centering vises guarantee ideal accessibility in the 5-axis machining of raw parts.
Downloads
CAD Model
