Key data at a glance
The Makro•4Grip stamping jaws, which enable the pre-stamping of round blanks, are compatible with all versions of the stamping unit. Two stamping inserts are mounted on each Makro•4Grip stamping jaw, with which the workpiece is stamped. In order to adapt the stamping inserts to different workpiece diameters or clamping jaw sizes, the stamping inserts are positioned at a total of three possible distances (narrow, medium, wide) from each other.
Further Information

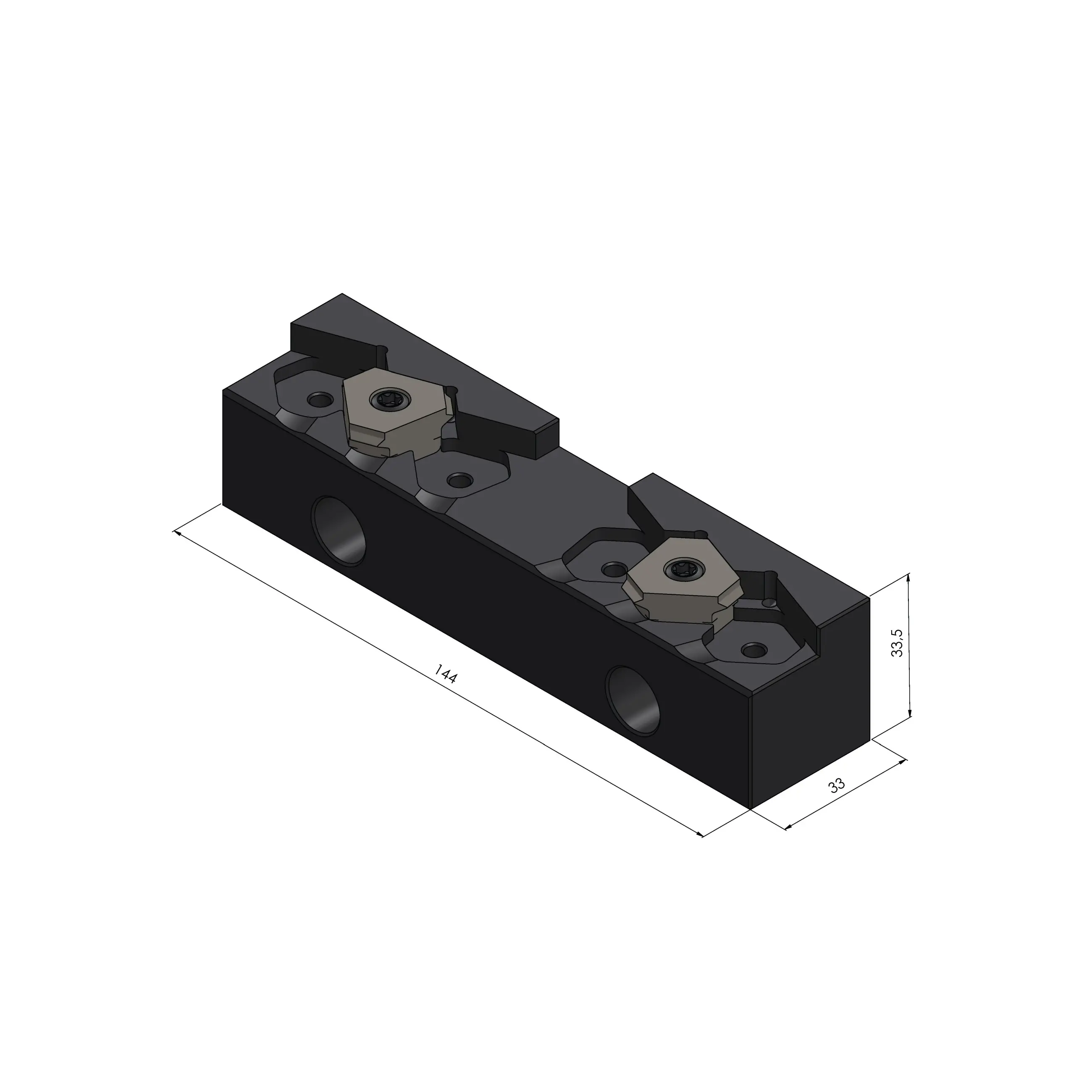

DIMENSIONS
144 x 33 x 34 mm (5.67" x 1.3" x 1.34")
FOR MATERIALS
up to 35 HRC
PACKAGING UNIT
1 Pair
WEIGHT
1.9 kg (4.19 lbs)
MATERIAL
Steel
Notice:
-
Scope of delivery:
Makro•4Grip Round Part Clamping
With a simple and cost-effective retrofit of the Makro•Grip® stamping unit and a LANG centering vise, the form-fit clamping technology can now also be used for round parts. Makro•4Grip clamping jaws are compatible with every vise size and cover clamping ranges from Ø 36 - 300 mm.
Cost-effectiveness
Simple and inexpensive retrofit of Makro•4Grip clamping jaws on any LANG vise, as well as the stamping jaws on a stamping unit.
Form-fit clamping
Clamping with Makro•Grip® provides maximum process reliability and is easy on the workpiece to be machined at the same time.
Accessibility
The compact Makro•Grip® vises guarantee ideal accessibility in the 5-axis machining of raw parts.
