Key data at a glance
Stamping Unit Spacers are used to quickly and precisely set the correct distance between two stamping unit bases during pre-stamping. The spacers are inserted into the groove of the t-slot plate and placed between the two stamping unit bases. The different lengths can then be used to set the various grid positions by pushing the stamping unit bases together. By setting the grid positions (52 mm, 104 mm, 192 mm and 384 mm), workpieces can be pre-stamping precisely so that they match the distance between the vises in the Quick•Point® zero-point clamping system during the subsequent clamping process.
Further Information
Notice:

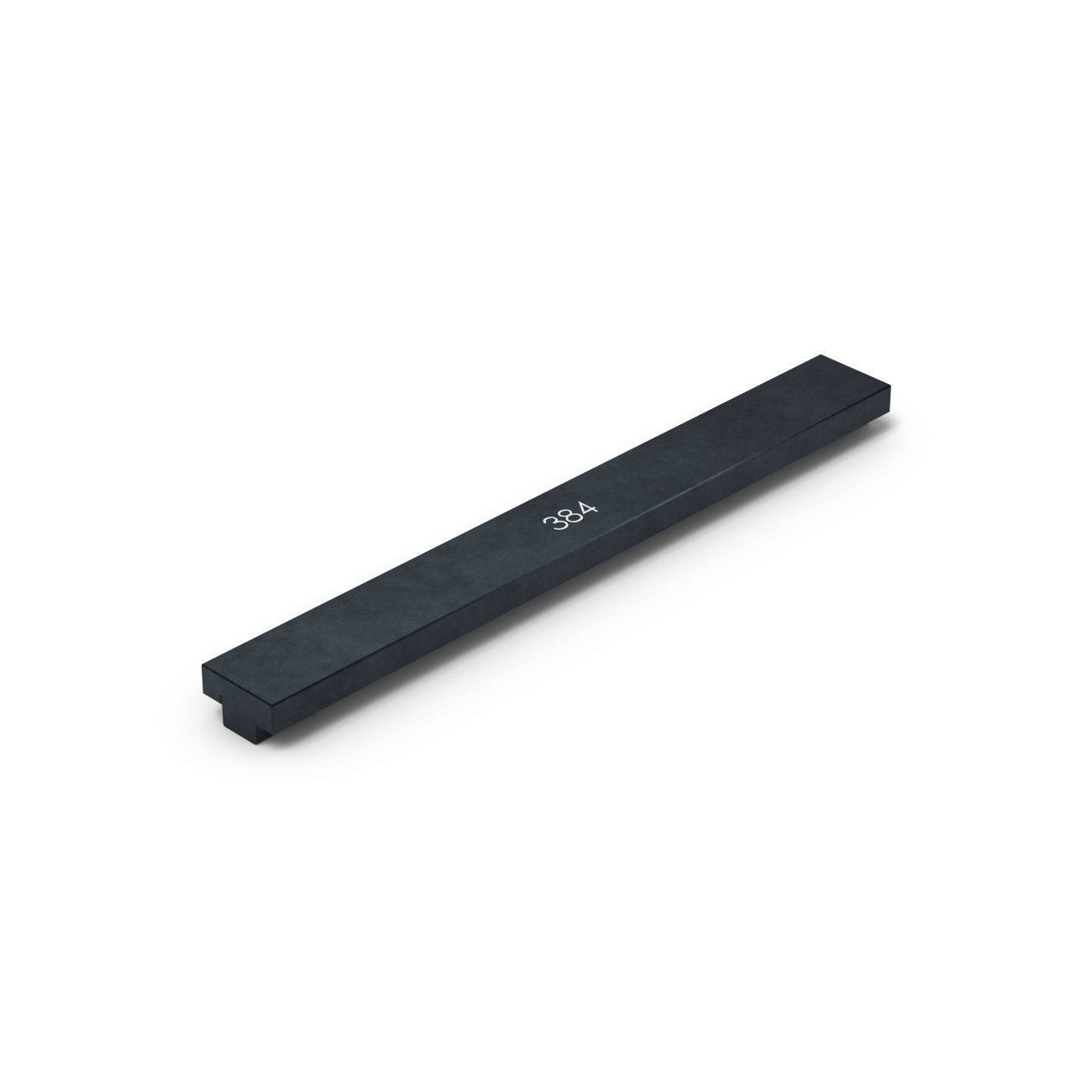

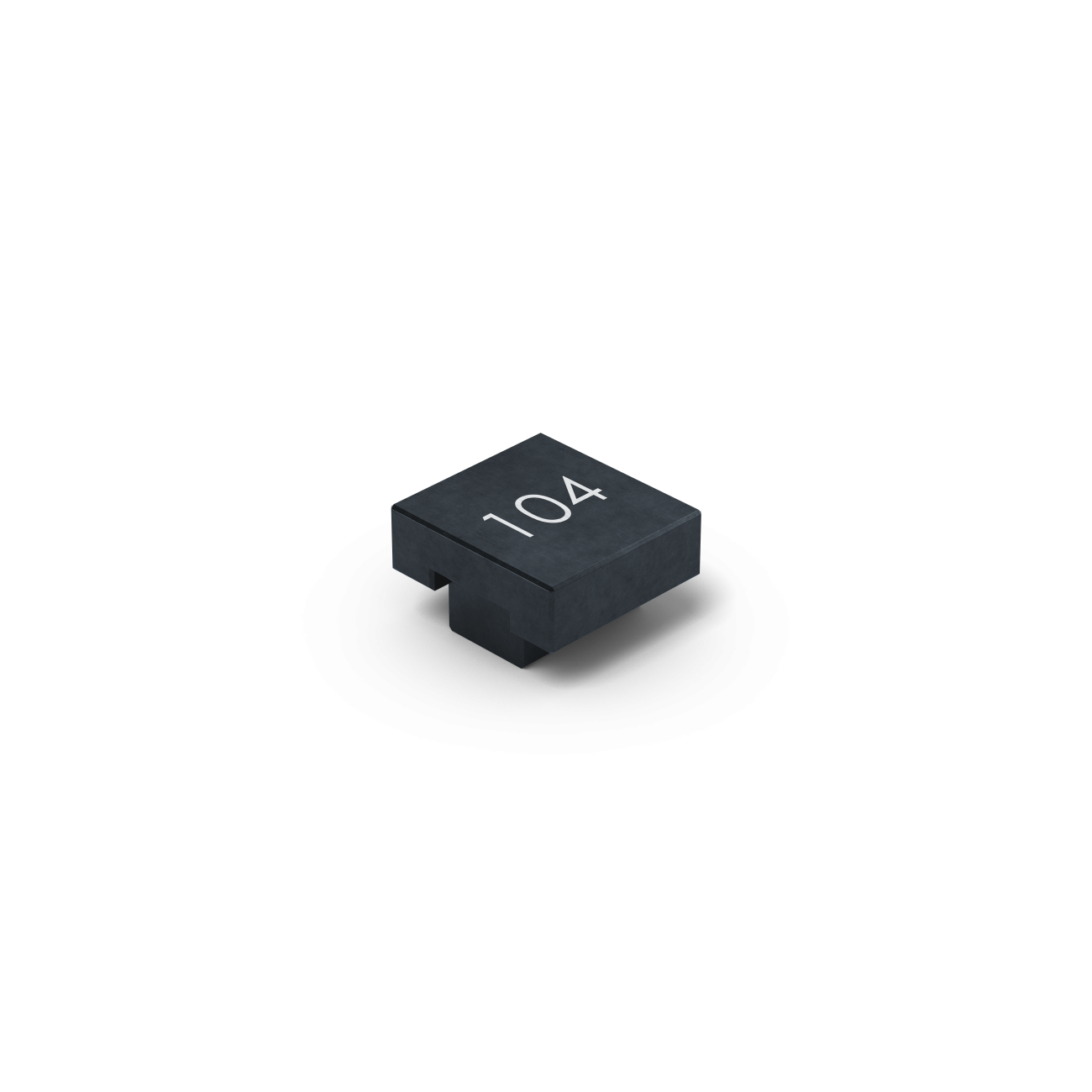

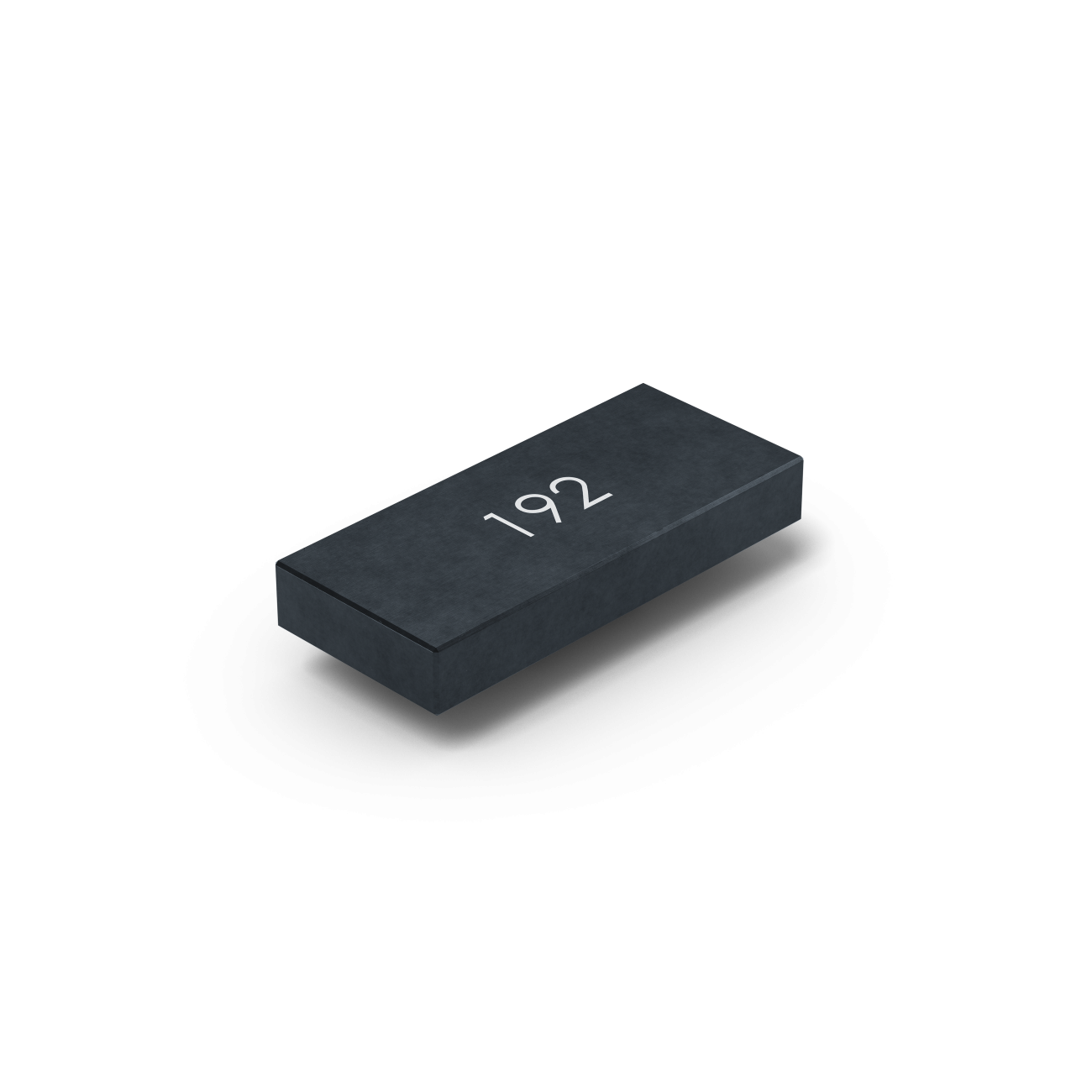

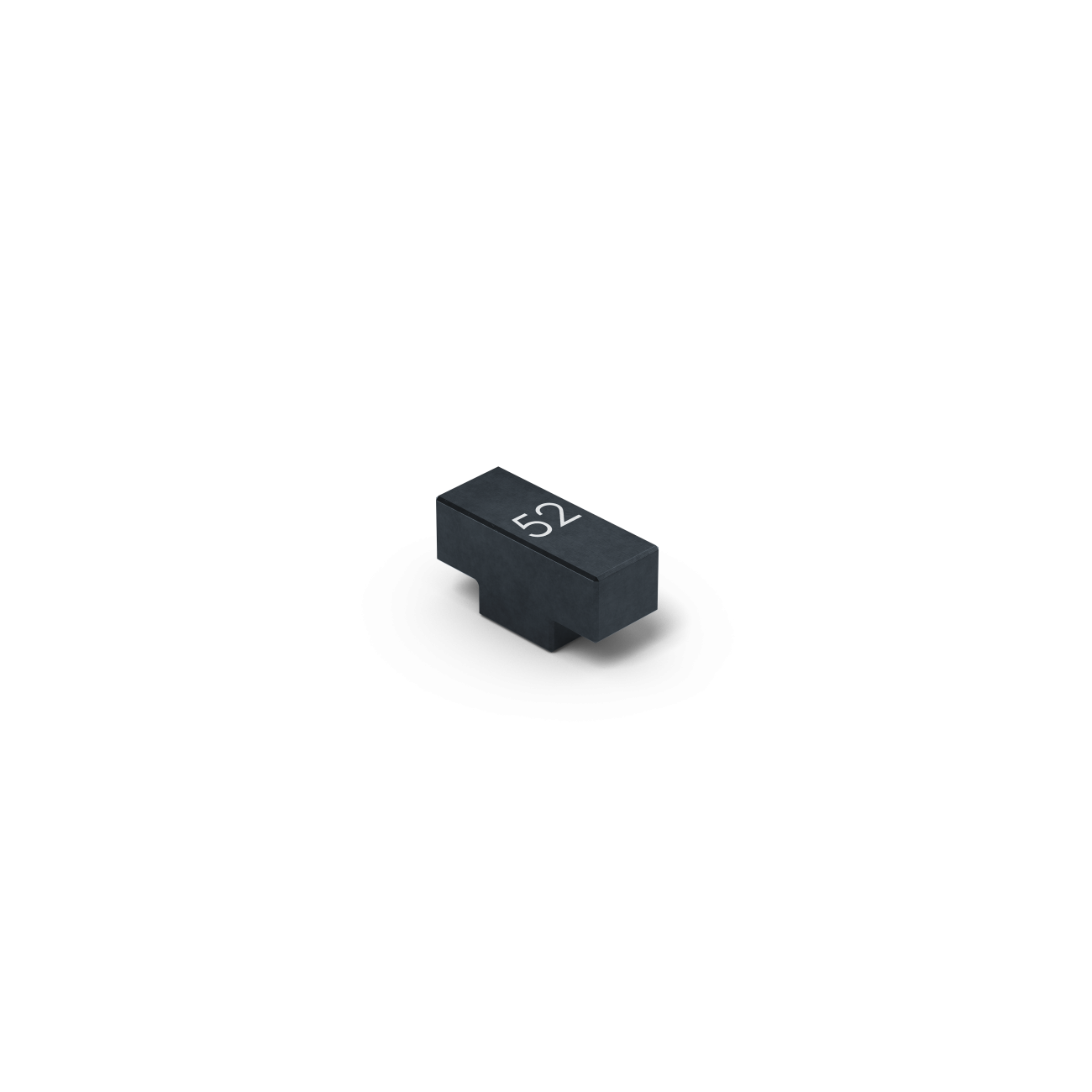

The set consists of four individual spacers of different lengths
Makro•Grip® FS Stamping Technology and Raw Part Clamping
The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Makro•Grip® FS is the further development of this product. Its compact design and high holding forces make the Makro•Grip® FS 5-Axis Vise the ideal clamping device for machining raw parts
