Key data at a glance

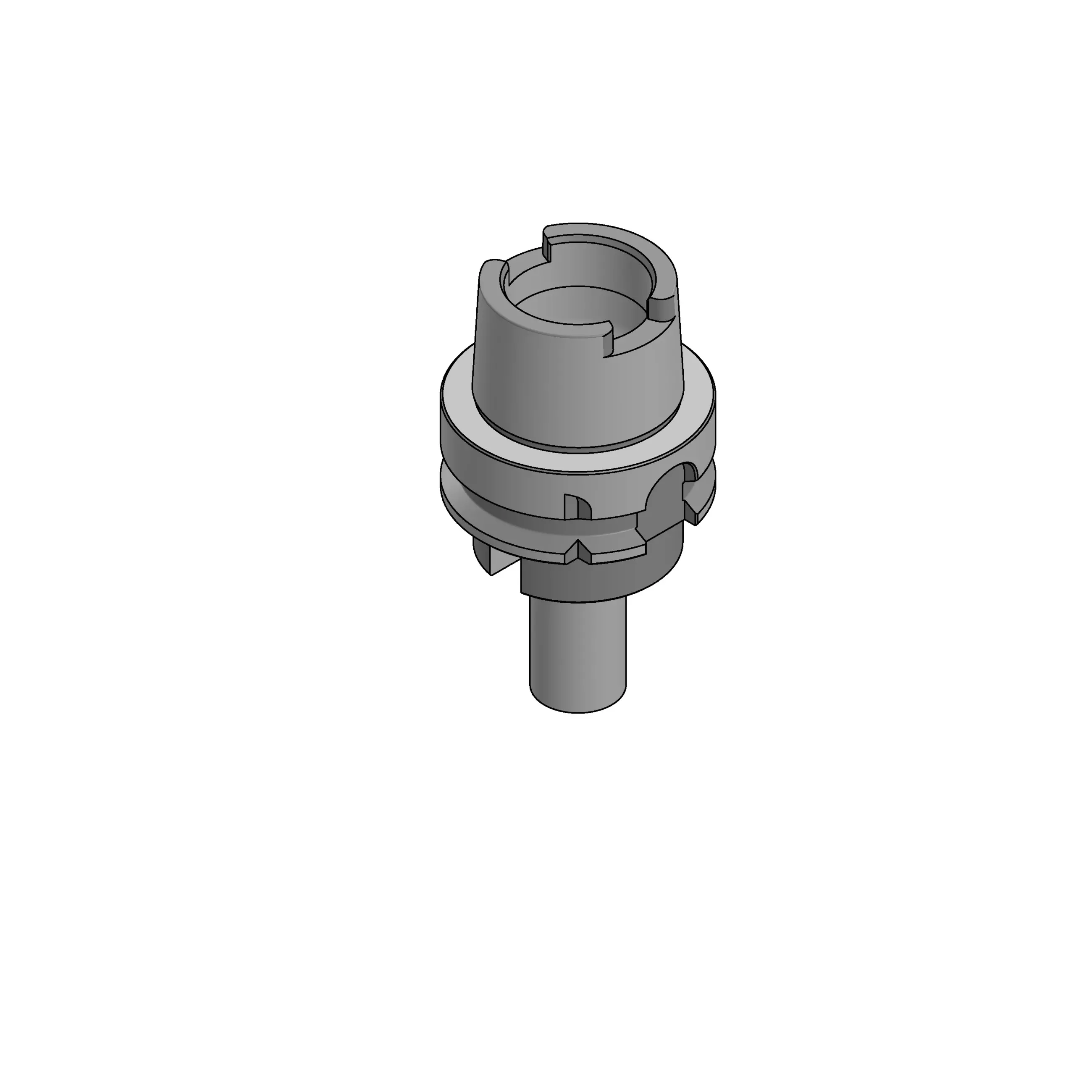

The tool holder type HSK-A63 specially adapted to HAUBEX, guarantees an exactly defined positioning of the workholding hood in the machine spindle.
Further Information
TYPE
Hollow taper shank
TOOL LENGTH
ca. 247 mm (ca. 9.72")
PACKAGING UNIT
1 Set
WEIGHT
1 kg (2.2 lbs)
MATERIAL
Steel
Notice:
Norm: DIN 69893-1
Scope of delivery:
HAUBEX Automation System
HAUBEX can be used on practically any machine tool and flexibly throughout the entire production process. With the tool magazine as the storage medium, in which the workholding hood is stored together with the self-centering vise and workpiece blank and is automatically exchanged into the machine, HAUBEX manages completely without additional handling and storage systems.
Application possibilities
Can be retrofitted to almost any type of machine tool and can be ideally integrated into the production environment thanks to the elimination of additional automation elements.
Flexibility
Like any common tool, not bound to a specific machine tool and thus can be used practically throughout the entire production process.
Cost-efficiency
Significant increase in added value of in-house production even with small quantities and low investments.
