Key data at a glance
The spindle unit for the Makro•Grip® Ultra is simply fitted between two high-precision centering plates, which is why the system is set up very quickly. By removing the clamping jaws, the spindle unit can be removed upwards, which makes cleaning after (and between) production processes extremely easy and convenient.
Further Information

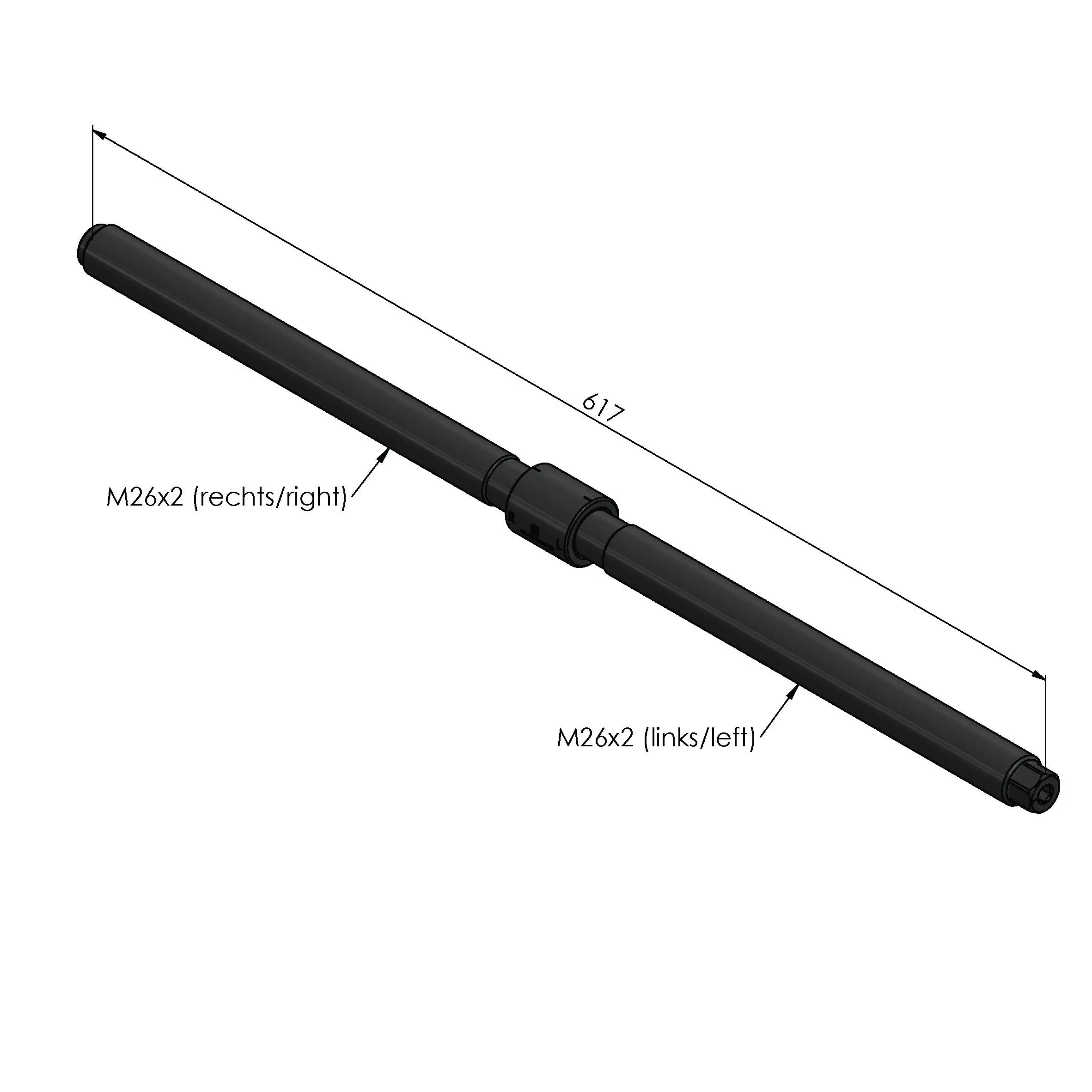

SPINDLE LENGTH
617 mm
THREAD PITCH
M26 x 2
WORKPIECE SHAPE
cubic / cylindrical / asymmetric
PACKAGING UNIT
1 Set
WEIGHT
2.5 kg
MATERIAL
Steel
Notice:
-
Scope of delivery:
Makro•Grip® Ultra
Makro•Grip® Ultra offers countless clamping possibilities and is perfectly fitted for machining applications of flat or large parts and also mould making. Thanks to its expandability and different jaw types, the modular clamping system practically covers any imaginable machining application.
Modularity
Changeover of clamping configuration within seconds through expansion of clamping ranges and exchange of clamping jaws
Application diversity
Equally applicable for single part or multiple clamping, cubic, round our asymmetric workpieces
Centric clamping of large components
Possibility of clamping workpieces of 800 mm or even larger
