Key data at a glance
The hydraulic screw jack Hydro•Sup serves to reduce possible vibrations in the machining process of protruding components. With a height of 86 mm, it matches the lowest system height of Makro•Grip® Ultra base body height. Due to its pendulum support, it offers a support height between 85 and 89 mm. By using additional spacers, the total height of the M and L systems can be replicated.
Further Information
FOR SUPPORT HEIGHT
85 - 89 mm (3.35" - 3.5")
PACKAGING UNIT
1 Set
WEIGHT
2.8 kg (6.17 lbs)
MATERIAL
Steel
Notice:
-
Scope of delivery:

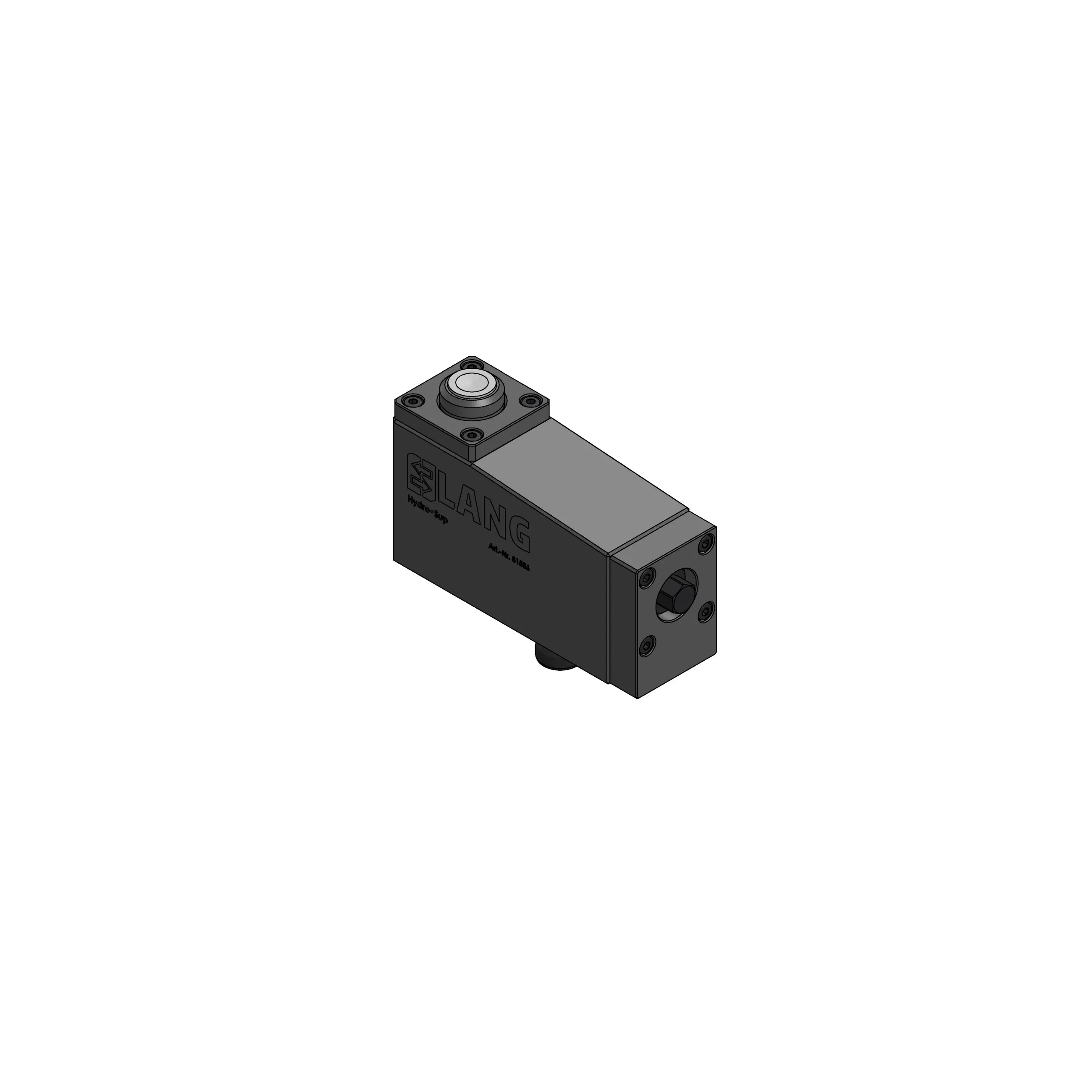

Hydro•Sup Screw Jack
The hydraulic screw jack Hydro•Sup can be clamped with its clamping stud in the zero-point system as a support when clamping protruding workpieces. The screw jack helps to reduce possible vibrations during the machining process, especially of thin sheet material, which results in a higher surface quality of the manufactured parts.
Quality of manufactured parts
As a support Hydro•Sup reduces possible vibrations during the machining process.
Modularity
By the addition of two different spacers which can be mounted to the screw jack, all Makro•Grip® Ultra system heights can be copied.
Application diversity
Not only applicable for Makro•Grip® Ultra, but also for Makro•Grip® 5-Axis Vises 125 when clamping protruding workpieces.
Application pictures
