Key data at a glance

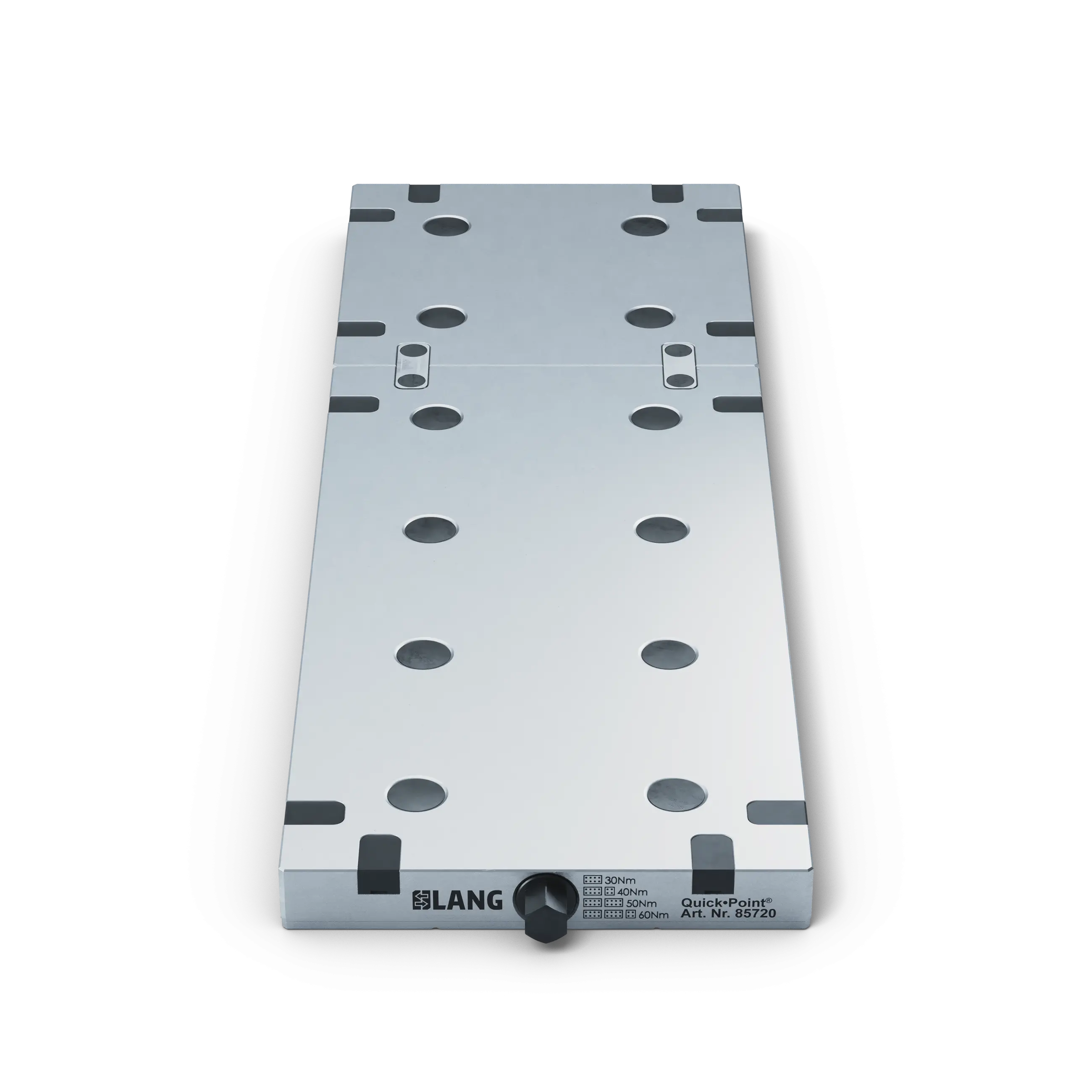

The connection set for the Quick•Point® modular plates is not only available in the conversion kit (Art. No. 85700), but also individually, for example, to connect modular plates with each other in the x-direction and to enable a cross-plate zero point grid. Due to the precisely fitting connection with the recesses of the zero point plate, module plates that are connected to each other no longer have to be aligned with one another.
Further Information
Notice:
-
Scope of delivery:
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
