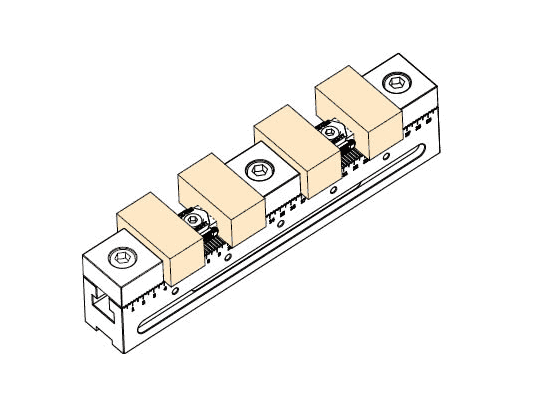

OK-Vise Serrated Jaw Clamp Model
Product Code - DK2-VTI
Key data at a glance

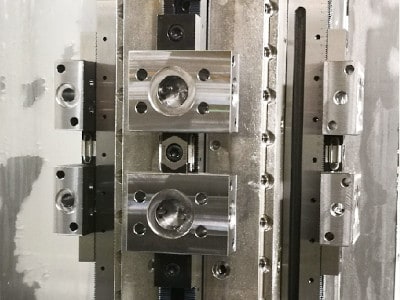

The serrated jaw workholding clamp is designed to create high friction between your workpiece and the clamp, ensuring the consistent and reliable clamping you need.
These clamps are among OK-VISE’s oldest designs and remain a popular choice due to their low profile and durability. Made with high-quality materials, the clamp is built to last, saving you money and time. The clamp is easy to install and adjust, allowing you to quickly and efficiently secure your workpiece with precision.
Further Information
Jaw Type
Serrated
Model Type
Imperial Model

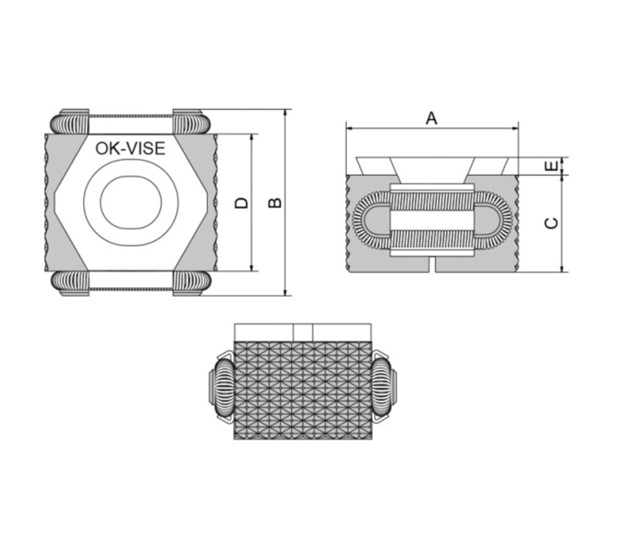

A minimum (Inch)
1.65"
A optimum (Inch)
1.77"
A maximum (Inch)
1.93"
B (Inch)
1.61"
C (Inch)
0.87"
D (Inch)
1.18"
E (Inch)
0.16"
Socket Head Screw DIN 912
1/2"(diameter) x 1 ¼"(screw length)
Pressing Force of Jaws, (max) lbf
14,612
Tightening Torque, (max) lb-ft
107
Weight (lbs)
0.4
Hardness of Jaws HRC
48-52
