Key data at a glance
The FastMill slide and clock solutions for the D49 module allow the fixing on the plate grid of a component on which it is not possible to maintain a 50mm pitch drilling and spot-facing: Maximum locking flexibility and the possibility of using existing holes on the piece.
Further Information

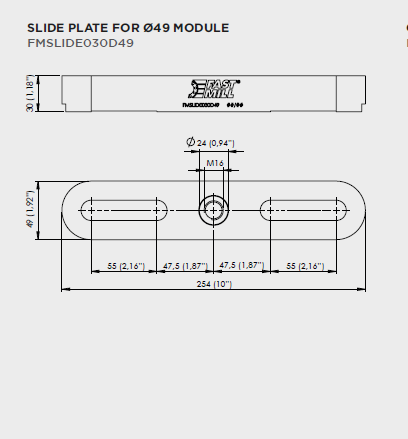

Size L
254 mm (10”)
Dimension c
49 mm (1.92”)
Height
30 mm (1.18”)
Weight
2.0 kg (4,40 lbs)
