Quick•Point® 96, Single Plate 192 x 156 x 27 mm, without mounting bores
Product Code - 45401
Key data at a glance

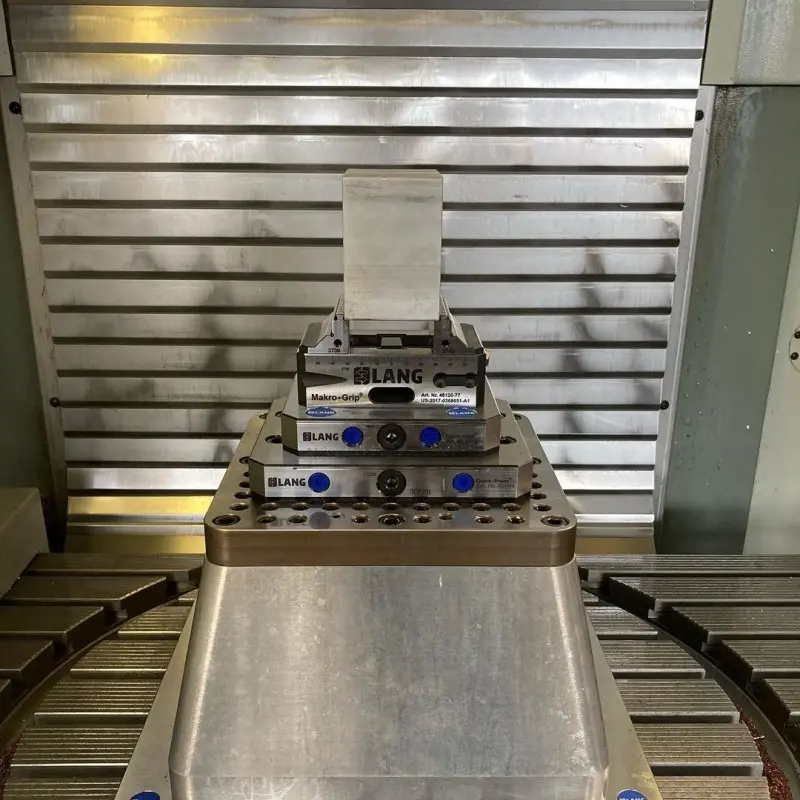

The Quick•Point® 96 plate with the dimensions 192 x 156 x 27 mm and without predefined mounting holes is a common solution for self-made fixtures, risers or trunnions and fits all LANG vises with a base width of 125 mm or clamping devises with a 96 mm zero-point pitch.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
Width of compatible vice
Clamping stud size
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
