Quick•Point® 52, Single Plate 104 x 104 x 27 mm, without mounting bores

Product Code - 45600

Add To Inquiry List

Quick•Point® 52, Single Plate 104 x 104 x 27 mm, without mounting bores

Product Code - 45600

Add To Inquiry List

Key data at a glance

The smallest of the Quick•Point® plates with a grid size of 52 mm is often mounted in rows on trunnions or clamping towers and is used for the multiple clamping of smaller components. It is also used on pallets or angular clamps. It comes without predefined mounting holes, which allows for their individual creation. In its corners, it provides space for mounting holes up to a countersunk diameter of 17.5 mm.

Further Information

DIMENSIONS

104 x 104 x 27 mm (4.09" x 4.09" x 1.06")

CLAMPING EDGE INCLUDED

CROSS-PLATE GRID POSSIBLE

Yes

CLAMPING TYPE

Single clamping

CLAMPING UNITS

1-fold

MOUNTING BORES

No, but not necessary

KEYWAYS

No, but possible (service)

M5 INDEXING BORES

No, but possible (service)

PACKAGING UNIT

1 Set

WEIGHT

2 kg (4.41 lbs)

MATERIAL

Steel

Grid System

More Options:

Torque

30 Nm

Maximum allowed torque

Vice size

77 mm (3.03")

Width of compatible vice

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

Quick-Lock applicable

yes

The fast actuation system can be attached

Notice:

Scope of delivery:

1 x Zero-Point plate 4 x

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available

Simple Operation Easy handling thanks to the simple, mechanical functional principle

Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

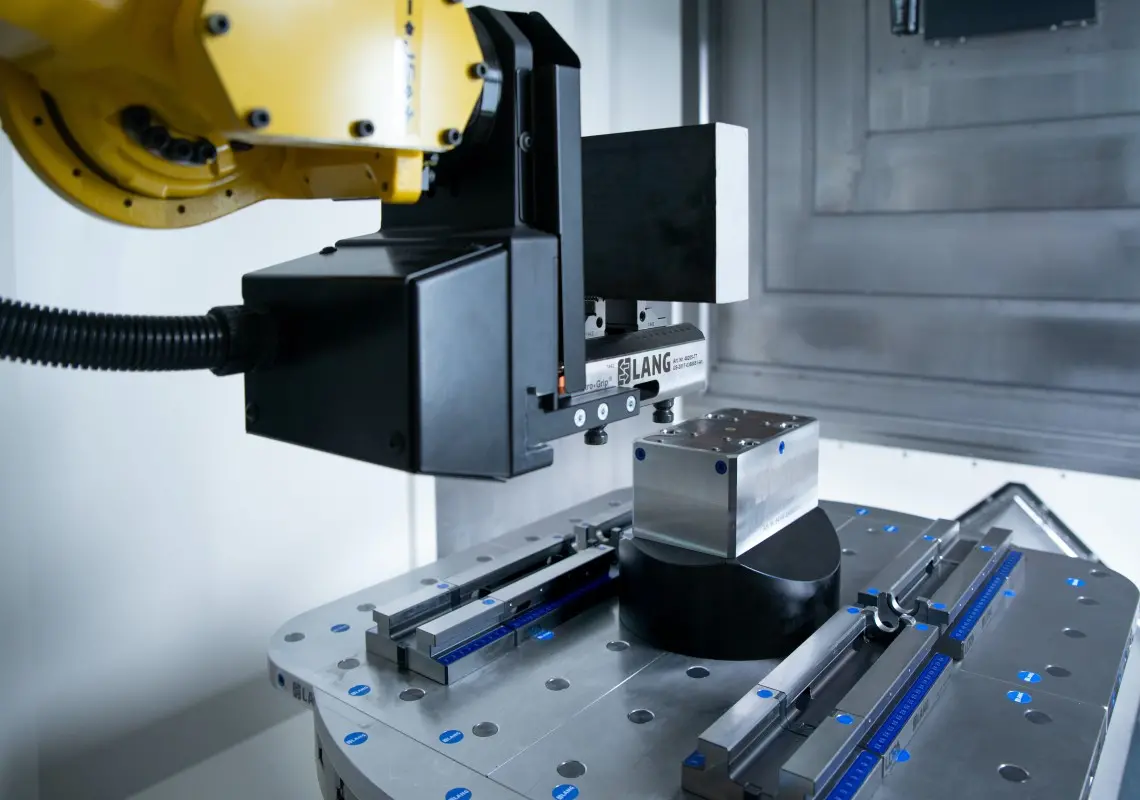

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.

Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.

Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
