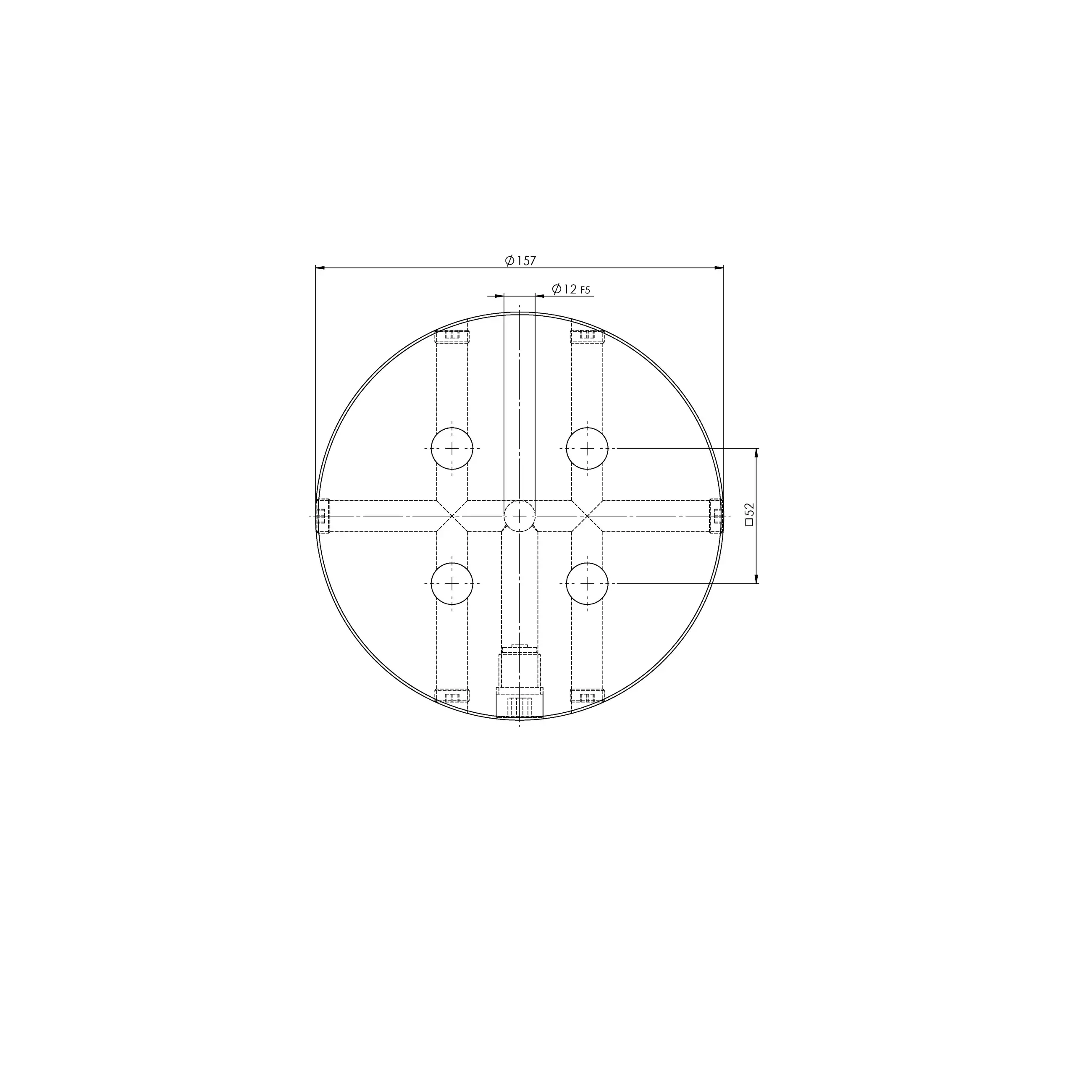

Quick•Point® 52, Round Plate ø 157 x 27 mm, without mounting bores
Product Code - 45901
Key data at a glance

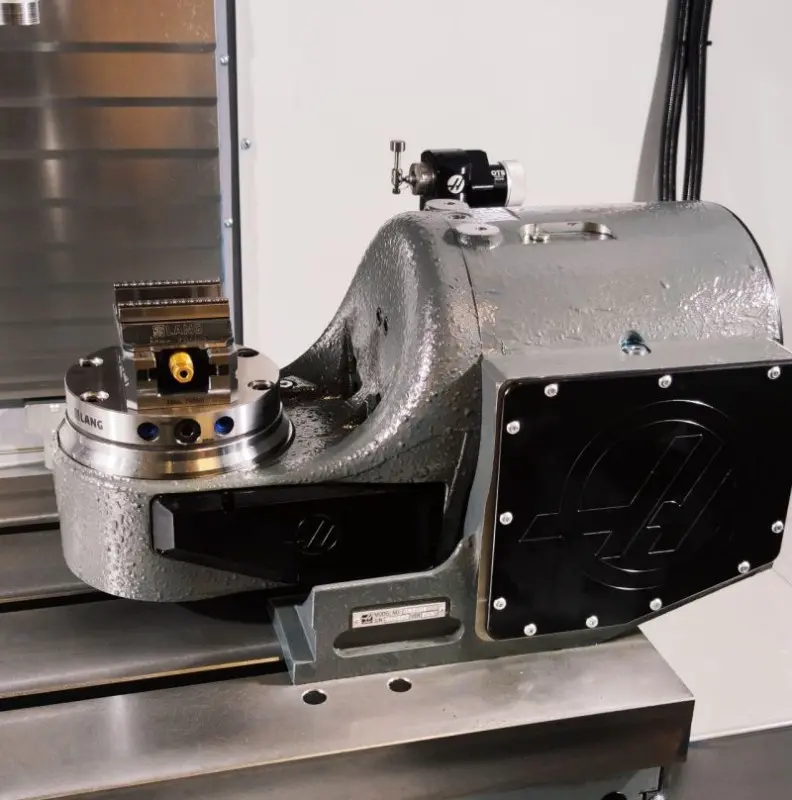

The Quick•Point® 52 round plate is typically used on rotary tables with a diameter of 160 mm or more, such as models from Haas. Likewise, it can be mounted on compatible pallets such as Erowa due to the matching mounting hole pattern. Its versatile customisability, for example, with three or four mounting holes, makes this 157 mm diameter round plate a very frequently used Quick•Point® variant.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
77 mm (3.03")
Width of compatible vice
Clamping stud size
16 mm (0.63")
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
