Quick•Point® 52, Grid Plate 104 x 104 x 27 mm, with bores for Quick•Tower tombstone

Product Code - 75600

Add To Inquiry List

Quick•Point® 52, Grid Plate 104 x 104 x 27 mm, with bores for Quick•Tower tombstone

Product Code - 75600

Add To Inquiry List

Key data at a glance

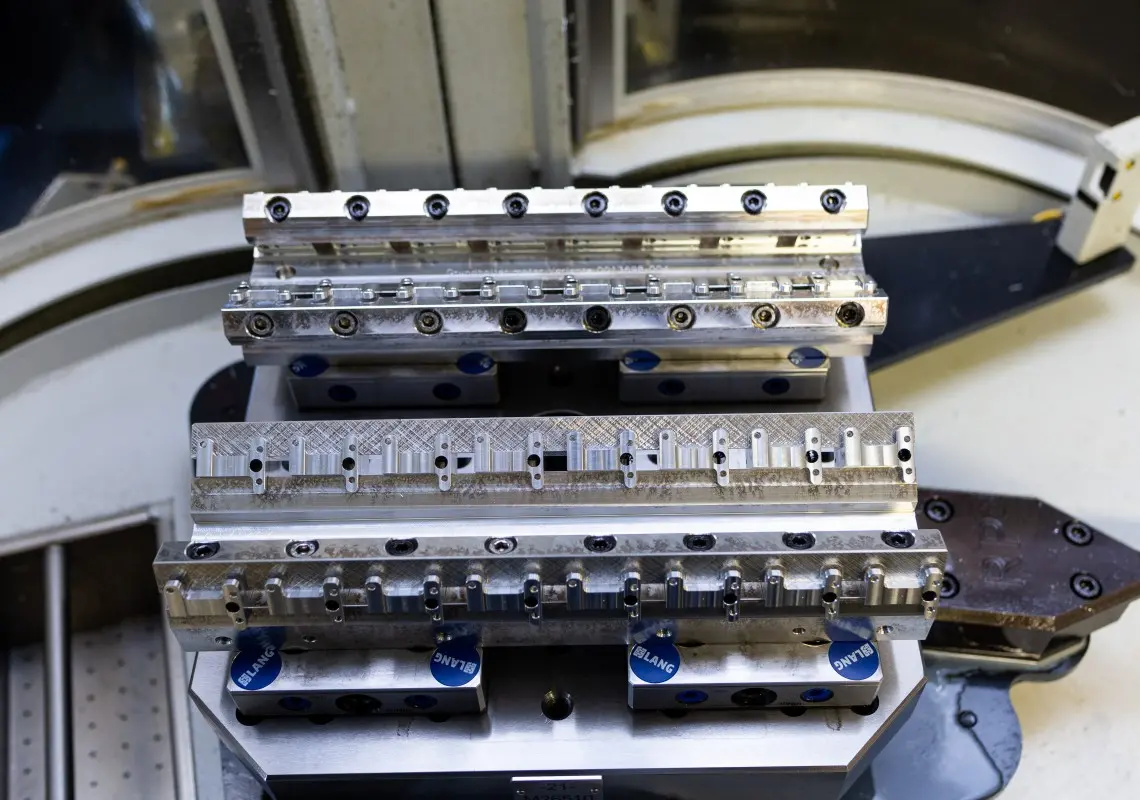

With external dimensions of 104 x 104 mm, this grid plate is one of the smallest in the Quick•Point® series. It has mounting holes for M10 / M12 cylinder head screws. Its hole spacing of 82 x 82 mm is suitable for both dimensions of the Quick•Tower clamping tower for horizontal machining centers, as well as for the smaller 3- and 4-sided clamping towers MT3 and MT4. Customers also like to use it on their own trunnions, towers and angular clamps

Further Information

DIMENSIONS

104 x 104 x 27 mm (4.09" x 4.09" x 1.06")

CLAMPING EDGE INCLUDED

CROSS-PLATE GRID POSSIBLE

Yes

CLAMPING TYPE

Single clamping

CLAMPING UNITS

1-fold

MOUNTING BORES

for 82 x 82 mm hole spacing (suitable for Quick-Tower)

KEYWAYS

No, but not necessary

M5 INDEXING BORES

Yes

PACKAGING UNIT

1 Set

WEIGHT

1.8 kg (3.97 lbs)

MATERIAL

Steel

Grid System

More Options:

Torque

30 Nm

Maximum allowed torque

Vice size

77 mm (3.03")

Width of compatible vice

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

Quick-Lock applicable

Yes

The fast actuation system can be attached

Notice:

Scope of delivery:

1 x Zero-Point plate 4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20) 2 x 4 x 4 x Socket head screw M10 x 35

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available

Simple Operation Easy handling thanks to the simple, mechanical functional principle

Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.

Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.

Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
