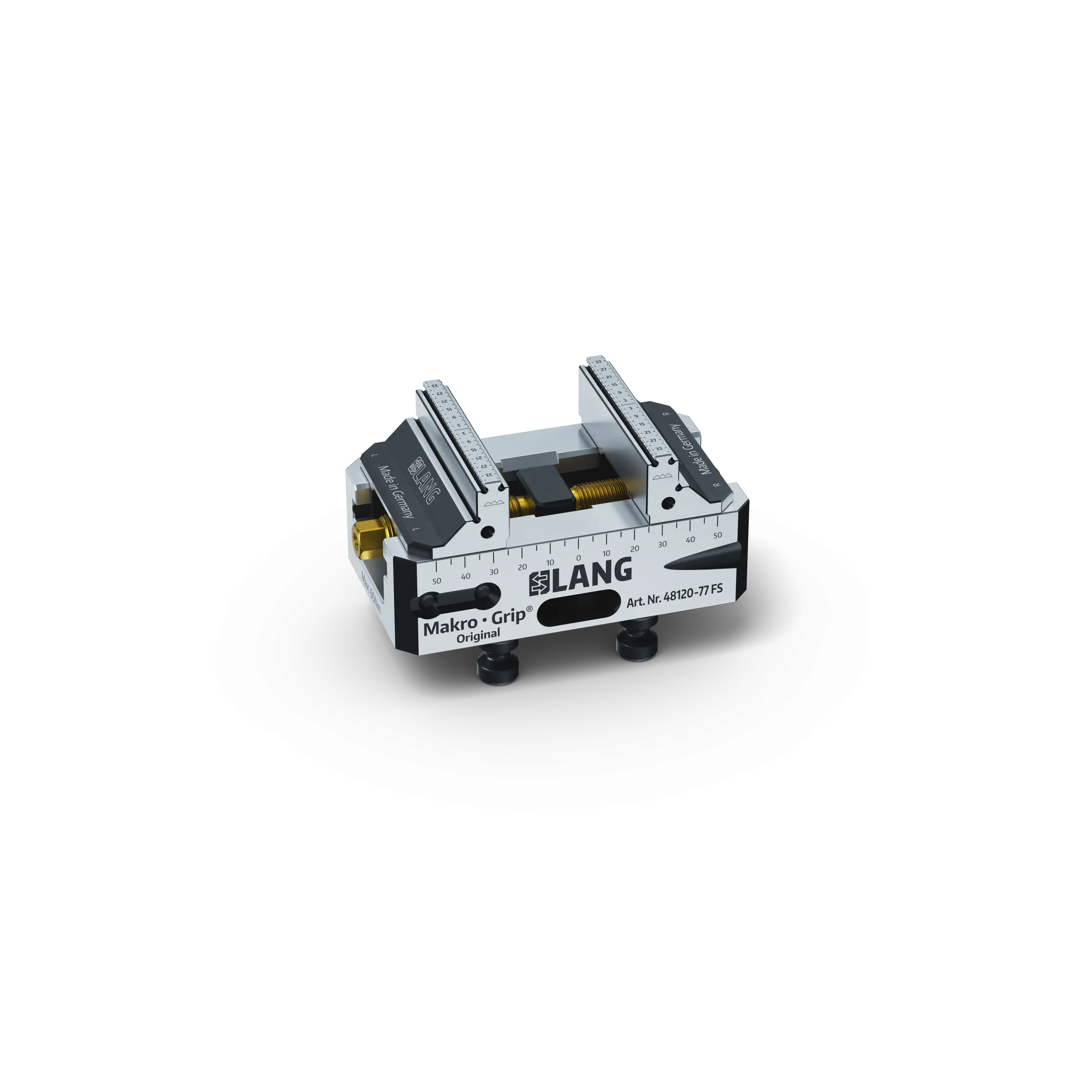

Makro•Grip® FS 77, 5-Axis Vise, Jaw width 77 mm, Clamping range 0 - 120 mm, with continuous / full serration

Product Code - 48120-77 FS

Add To Inquiry List

Makro•Grip® FS 77, 5-Axis Vise, Jaw width 77 mm, Clamping range 0 - 120 mm, with continuous / full serration

Product Code - 48120-77 FS

Add To Inquiry List

Catalogues

1. 2025 Lang Catalogue
2. Lang Workholding
3. 2017 LANG Workholding
4. 2025 Lang Speciality Products
5. Lang MakroGrip Ultra
6. Automation
7. Zero-Point Clamping
8. LANG Aero & RoboTrex Compact.

Key data at a glance

The best-selling 5-Axis Vise with jaw width 77 mm and a clamping range of up to 120 mm is now also available with continuous holding serration (full serration). Thanks to its serration, the centering vise achieves up to 60% more holding force when clamping pre-stamped workpiece blanks - depending on the material (hardness). This ensures maximum process reliability in the clamping process and allows even higher cutting values. The combination of compactness, accessibility and maximum holding forces make the Makro•Grip® FS 5-Axis Vise the ideal clamping device in 5-axis machining.

Further Information

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Clamping Range

0 - 120 mm (0" - 4.72")

Vise

77 mm

Dimensions

130 x 77 x 65 mm (5.12" x 3.03" x 2.56")

Clamping Method

by form-fit / by friction

Workpiece Shape

Cubic

Packaging Unit

1 Piece

Weight

2.9 kg (6.39 lbs)

Material

Steel

More Options:

Torque

60 Nm

Maximum allowed torque

Clamping stud size

16 mm (0.63")

Diameter of clamping studs

Clamping force

14.000 N

Clamping force at maximum torque

Centring accuracy

±0,02 mm

Centring tolerance of vices

Automatable

Yes

Automation interface included

Grid system

52 mm (2.05")

Zero-point pitch

Single components features:

Dimensions

16 mm (0.63")

For Grid Size

Threaded Pin

Dimensions

Jaw width: 77 mm (3.03")

Spindle Length

135 mm (5.31")

Thread Pitch

M16 x 1.5

Makro•Grip® FS Stamping Technology and Raw Part Clamping

The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Makro•Grip® FS is the further development of this product. Its compact design and high holding forces make the Makro•Grip® FS 5-Axis Vise the ideal clamping device for machining raw parts.

Holding force Thanks to a new stamping and holding serration, up to 60% higher holding forces can be achieved with Makro•Grip® FS.

Process reliability Clamping with Makro•Grip® FS offers maximum process reliability and allows even higher cutting rates and faster milling processes.

Accessibility The compact Makro•Grip® FS self-centering vises guarantee ideal accessibility in the 5-axis machining of raw parts.
