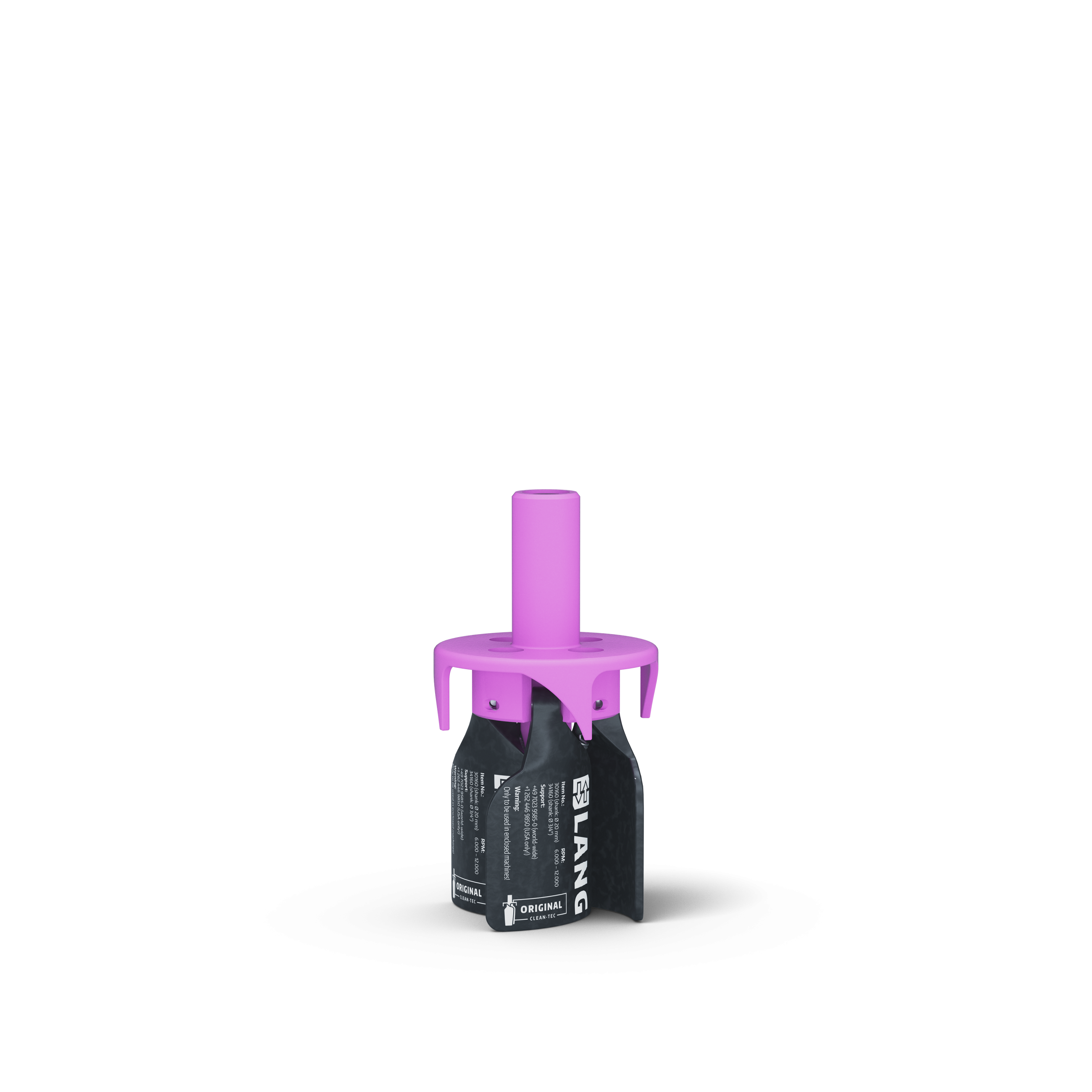

Clean•Tec 160, Ø 20mm Shaft, Chip Fan
Product Code - 30160
Catalogues
1. 2025 Lang Catalogue2. Automation
3. Lang MakroGrip Ultra
4. Lang Workholding
5. 2017 LANG Workholding
6. Zero-Point Clamping
7. 2025 Lang Speciality Products
8. LANG Aero & RoboTrex Compact.
Key data at a glance
The smallest version of the Clean•Tec chip fan, whose body can be clamped in any standard Ø 20 mm tool holder, is particularly suitable for targeted cleaning tasks such as blowing out pocket holes and is more commonly used in smaller machines. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling.
Further Information

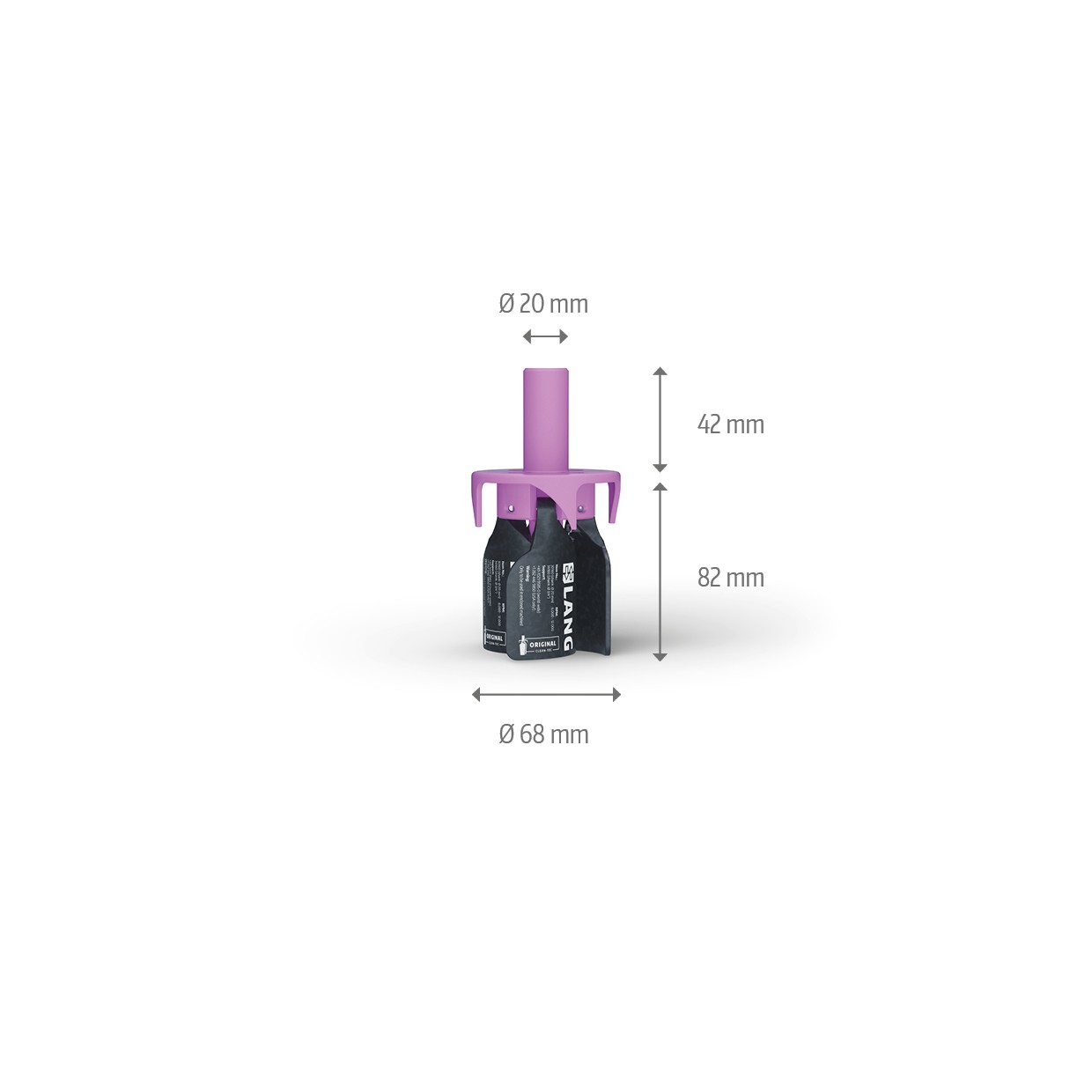

SOCKET DIAMETER
20 mm (0.79")
SOCKET LENGTH
42 mm (1.65")
WING LENGTH
82 mm (3.23")
TOTAL LENGTH
124 mm (4.88")
DIAMETER WITH CLOSED WINGS
68 mm (2.68")

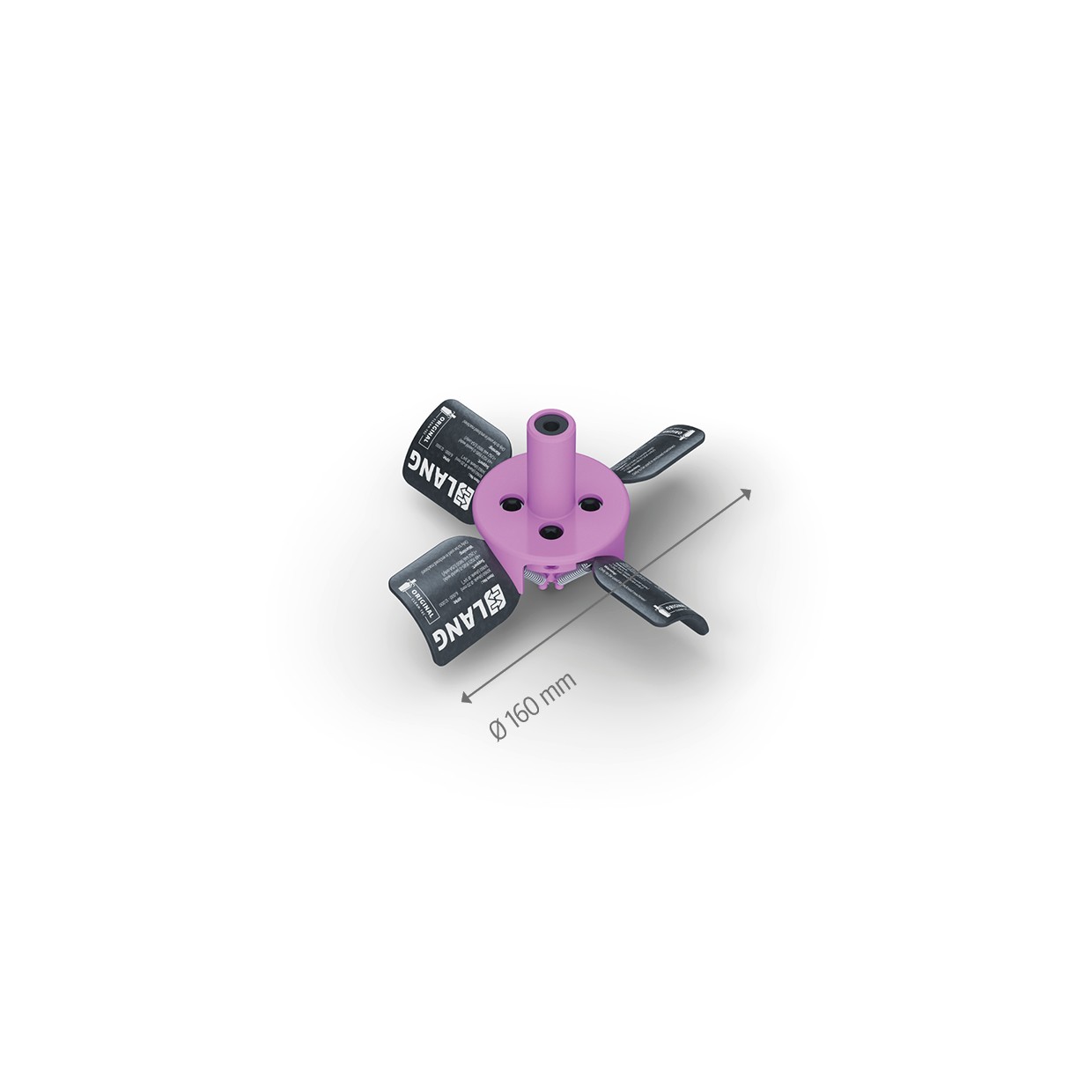

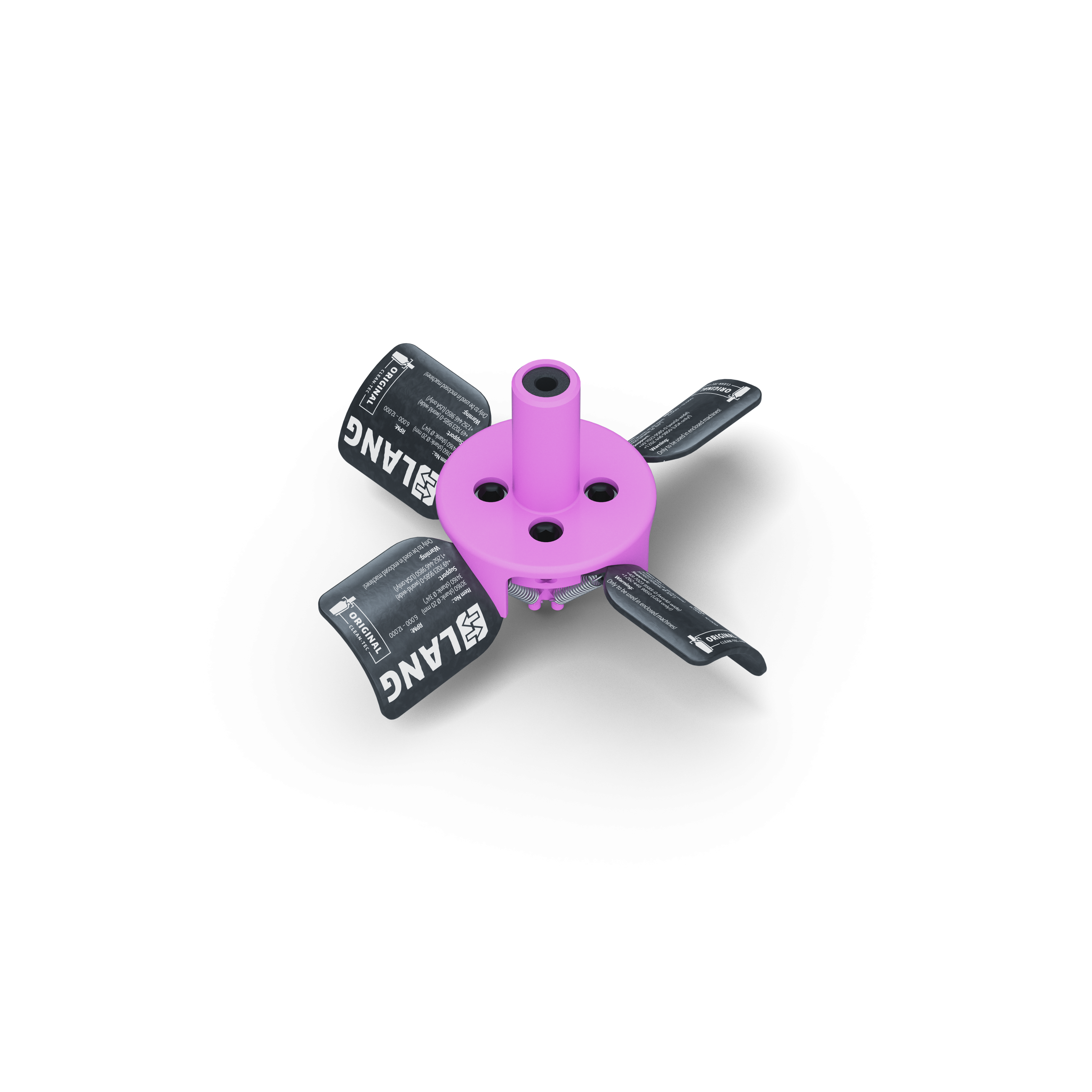

DIAMETER WITH OPEN WINGS
160 mm (6.3")
RPM RANGE
6000 - 12000 R/min
APPLICATION
targeted
PACKAGING UNIT
1 Set
WEIGHT
0.17 kg (0.37 lbs)
MATERIAL
Plastic
Model Type
Metric Model
Notice:
-
Scope of delivery:
Clean•Tec Chip Fan
Clean•Tec Chip Fan
Cleanliness
No swarf and coolant outside the machine tool
Energy Savings
Expensive compressed air not needed
Unmanned Cleaning
Especially essential in automated manufacturing

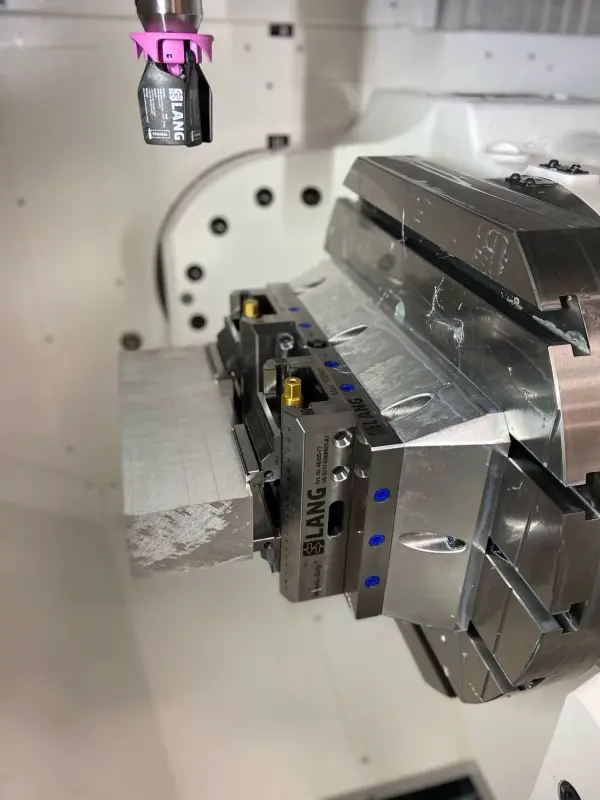

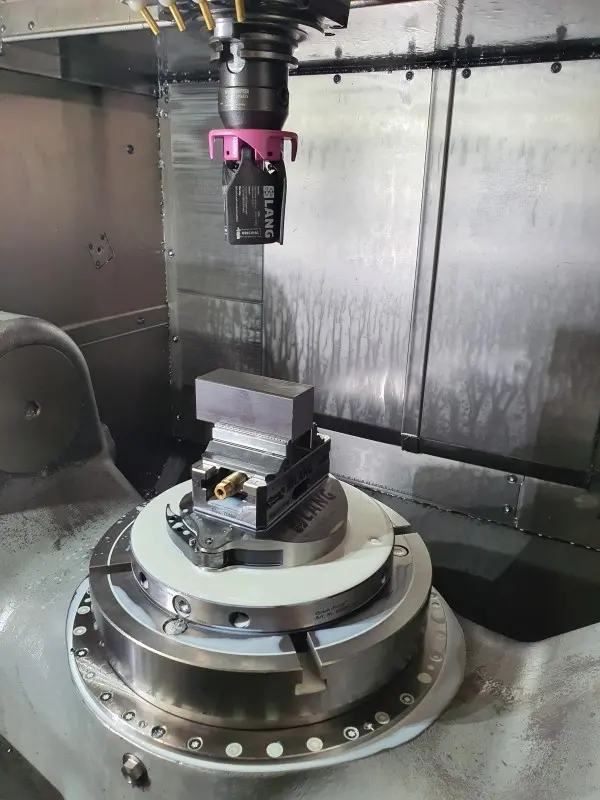

Application pictures
Spare parts and individual components
Accessories
