Key data at a glance

The largest version of the Clean•Tec chip fan with a shaft diameter of 19.05 mm (3/4 inch), is particularly suitable for cleaning large areas and is, therefore, more likely to be used in larger machines. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling.

Further Information

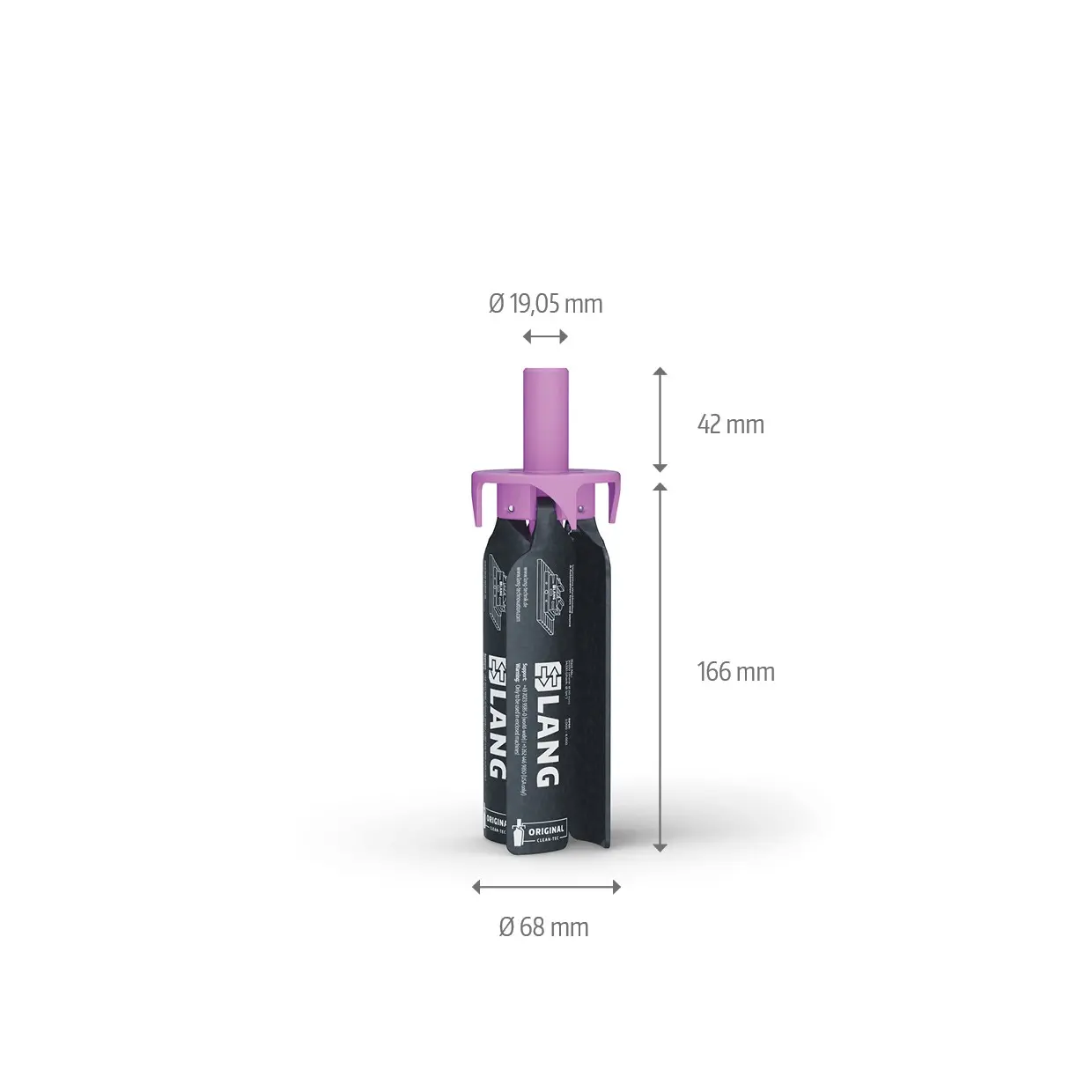

SOCKET DIAMETER

0.75" (19.05 mm)

SOCKET LENGTH

1.65" (42 mm)

WING LENGTH

6.54" (166 mm)

TOTAL LENGTH

8.19" (208 mm)

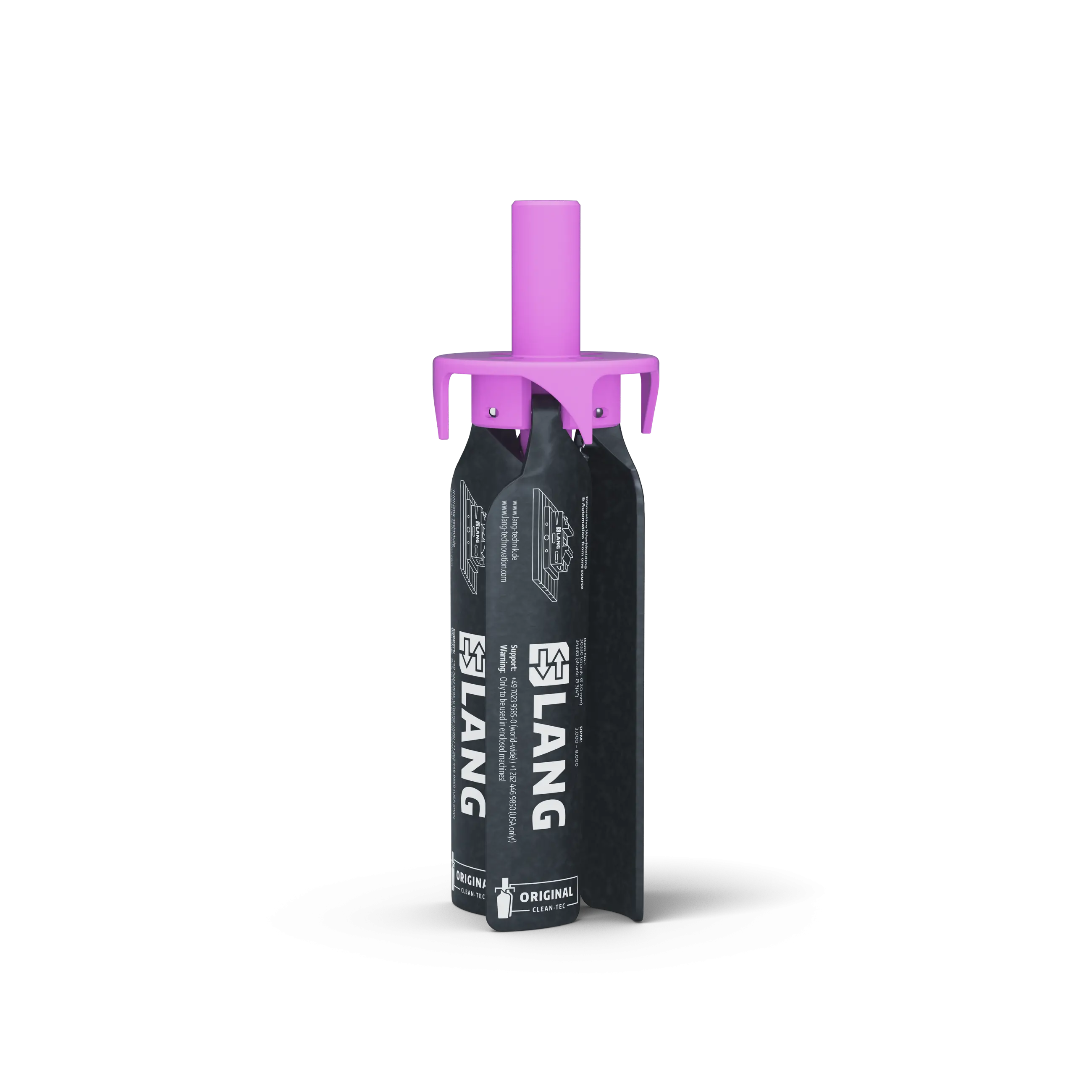

DIAMETER WITH CLOSED WINGS

2.68" (68 mm)

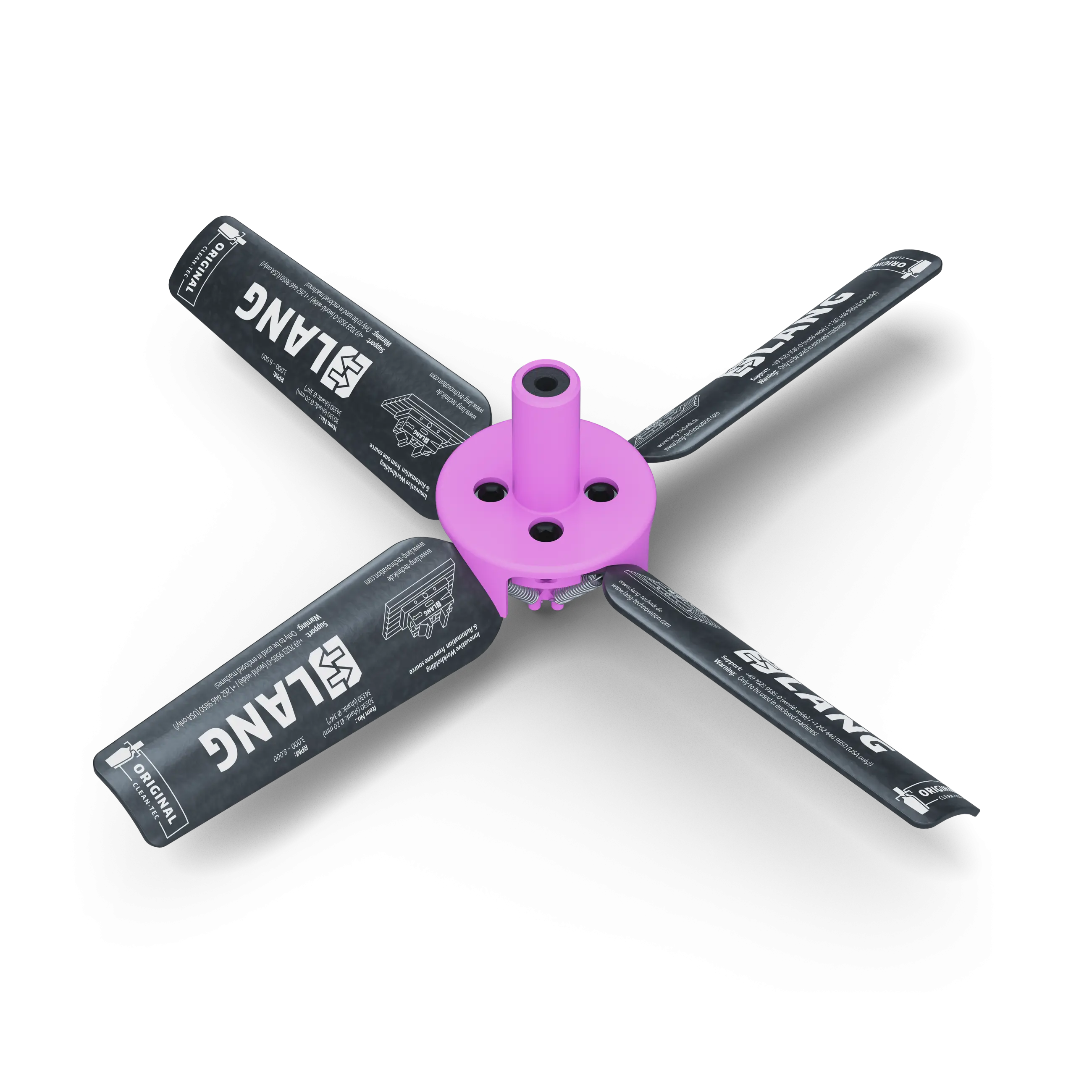

DIAMETER WITH OPEN WINGS

12.99" (330 mm)

RPM RANGE

3000 - 8000 R/min

APPLICATION

Large-Scale

PACKAGING UNIT

WEIGHT

0.44 lbs (0.2 kg)

MATERIAL

Plastic

Model Type

Imperial Model

Notice:

Scope of delivery:

Clean•Tec Chip Fan

The Clean•Tec, „The Original“ chip fan, cleans the machine interior after the machining process, removing chips and coolant without the operator having to open the machine tool door. As a final step in the machining process the chip fan is called up via the NC program and selected from the tool magazine.

Cleanliness No swarf and coolant outside the machine tool

Energy Savings Expensive compressed air not needed

Unmanned Cleaning Especially essential in automated manufacturing
