Clean•Tec 260, Ø 3/4" Shaft, Chip Fan

Product Code - 34260

Add To Inquiry List

Clean•Tec 260, Ø 3/4" Shaft, Chip Fan

Product Code - 34260

Add To Inquiry List

Catalogues

1. 2025 Lang Catalogue
2. Automation
3. Lang MakroGrip Ultra
4. Lang Workholding
5. 2017 LANG Workholding
6. Zero-Point Clamping
7. 2025 Lang Speciality Products
8. LANG Aero & RoboTrex Compact.

Key data at a glance

The medium-size version of the Clean•Tec chip fan with a shaft diameter of 19.05 mm (3/4 inch), is suitable for universal cleaning tasks. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling.

Further Information

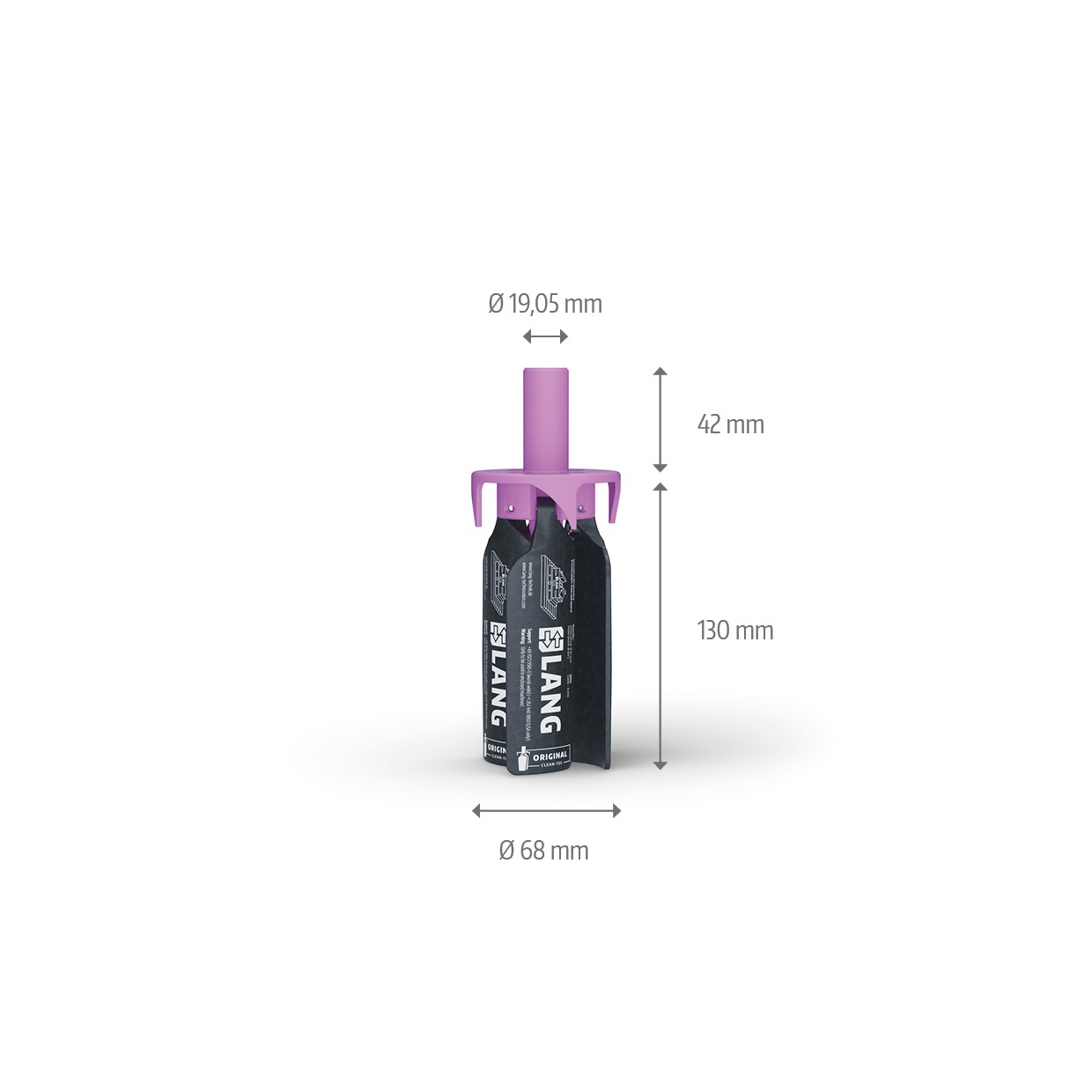

SOCKET DIAMETER

0.75" (19.05 mm)

SOCKET LENGTH

1.65" (42 mm)

WING LENGTH

5.12" (130 mm)

TOTAL LENGTH

6.77" (172 mm)

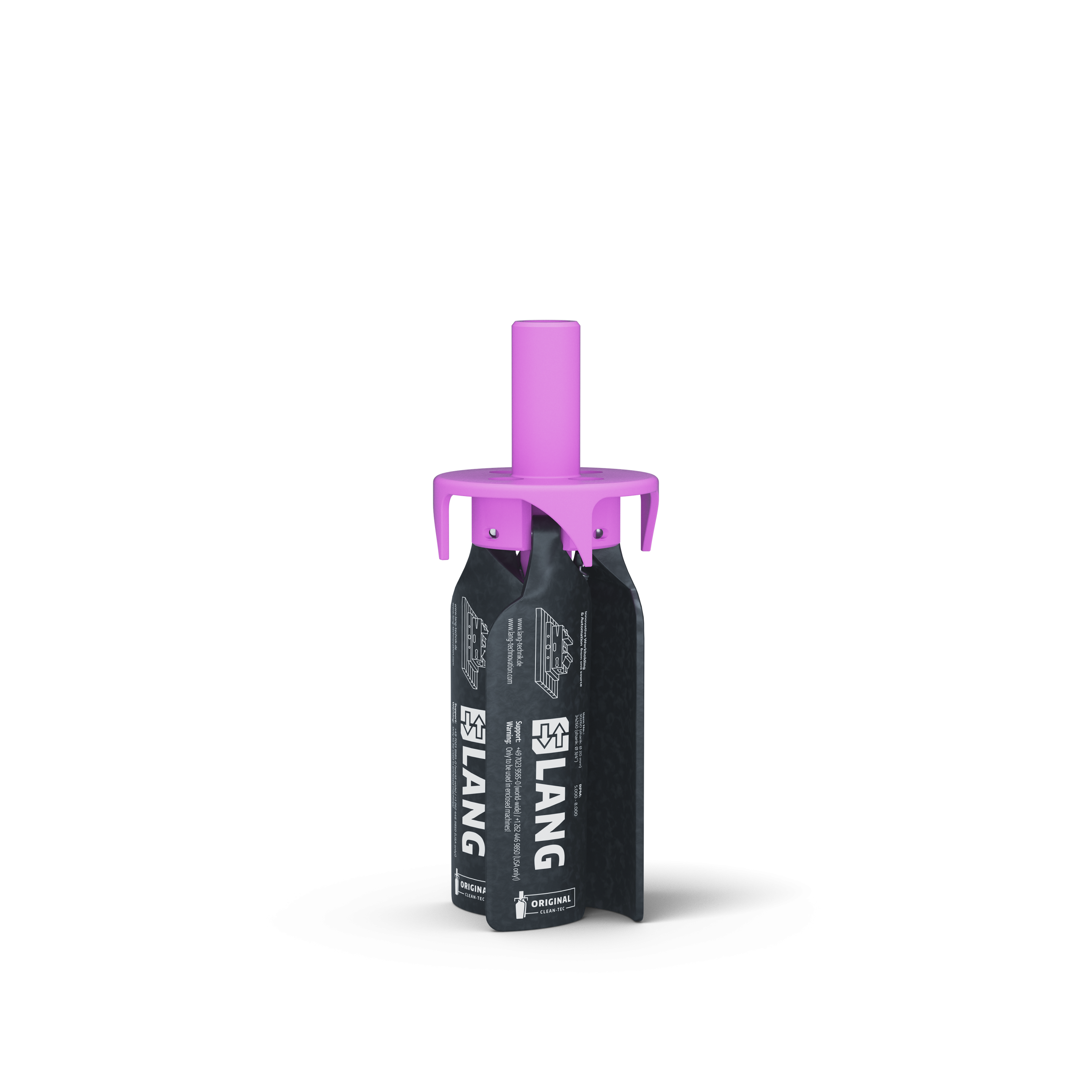

DIAMETER WITH CLOSED WINGS

2.68" (68 mm)

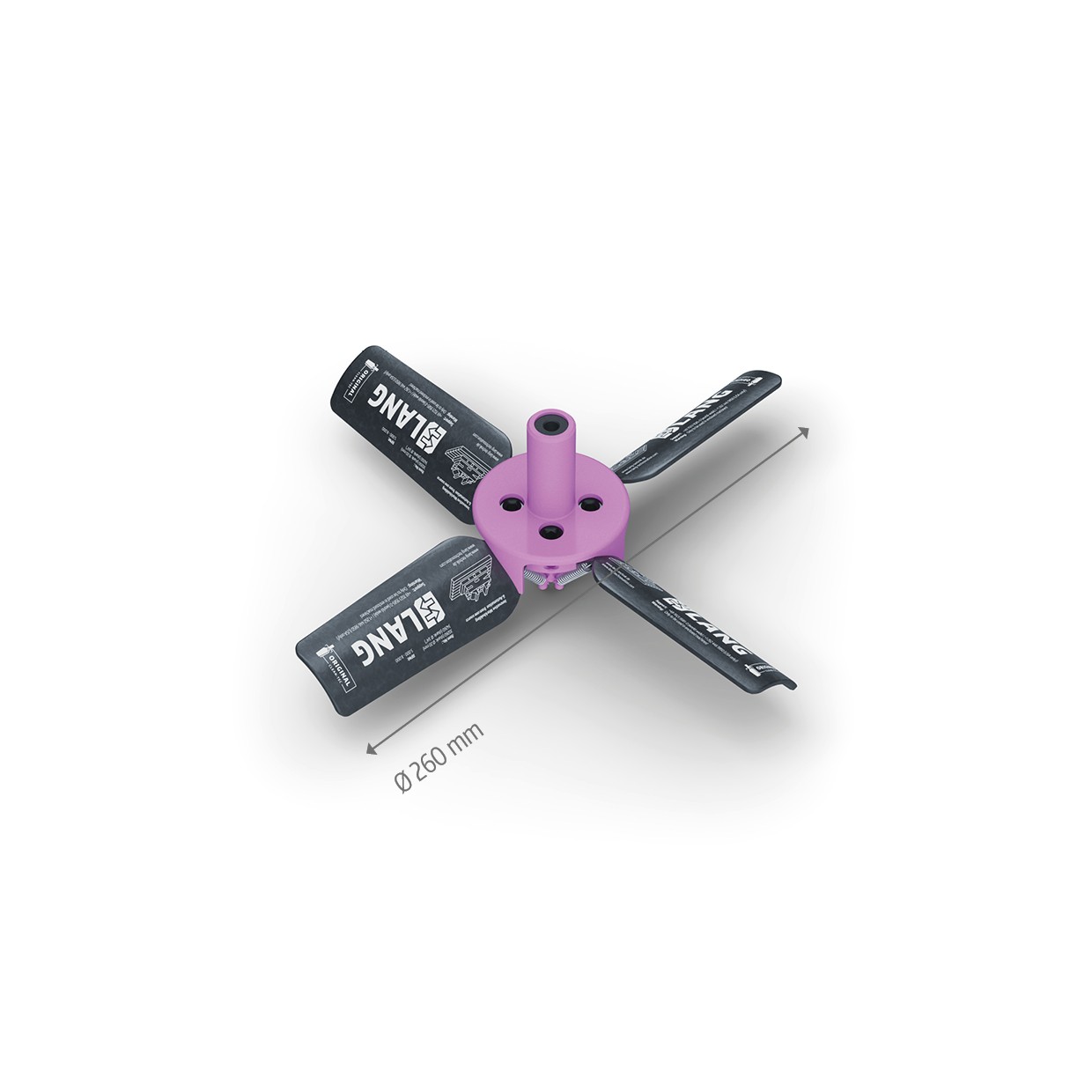

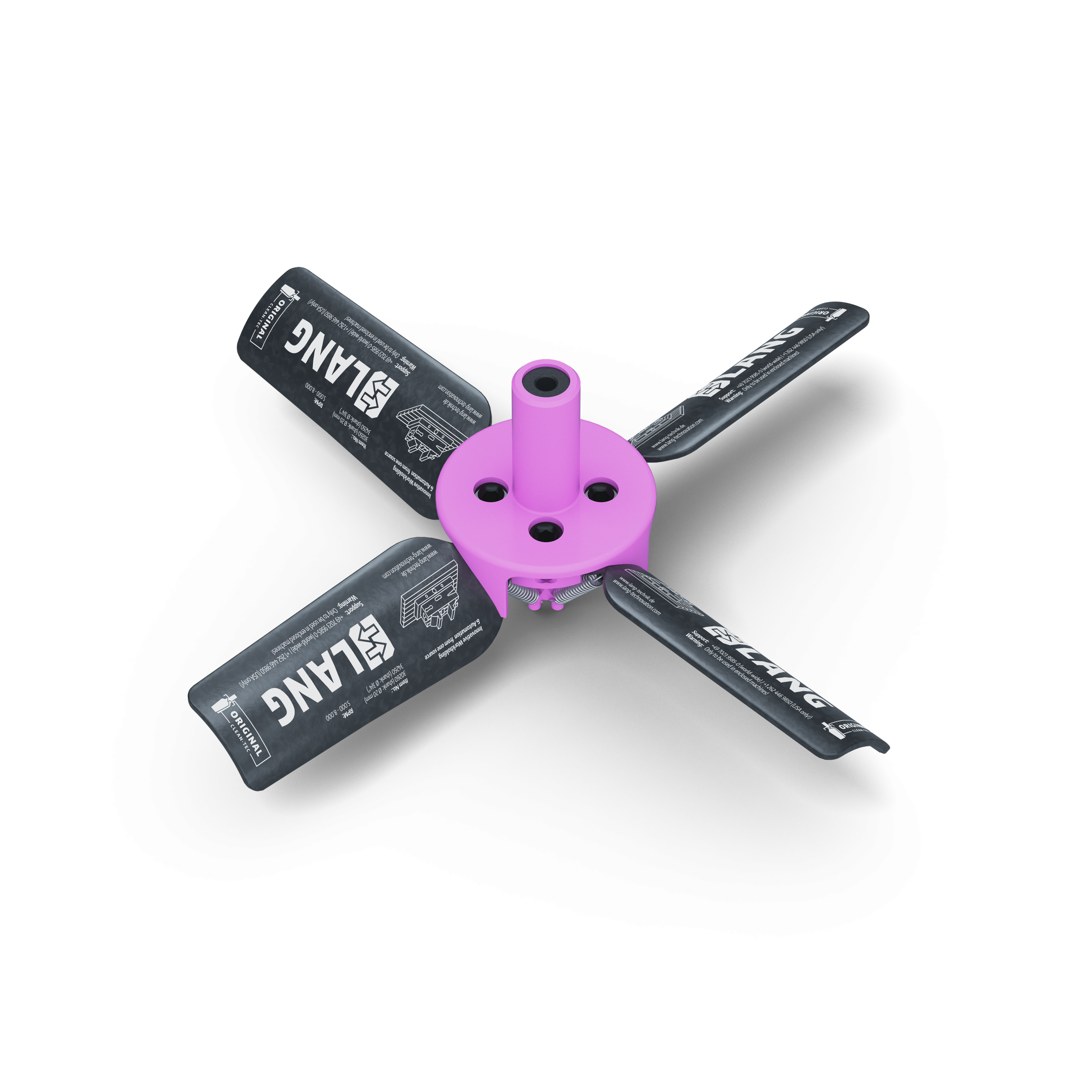

DIAMETER WITH OPEN WINGS

10.24" (260 mm)

RPM RANGE

5000 - 8000 R/min

APPLICATION

Universal

PACKAGING UNIT

WEIGHT

0.19 kg (0.42 lbs)

MATERIAL

Plastic

Model Type

Imperial Model

Notice:

Scope of delivery:

Clean•Tec Chip Fan

The Clean•Tec, „The Original“ chip fan, cleans the machine interior after the machining process, removing chips and coolant without the operator having to open the machine tool door. As a final step in the machining process the chip fan is called up via the NC program and selected from the tool magazine.

Cleanliness No swarf and coolant outside the machine tool

Energy Savings Expensive compressed air not needed

Unmanned Cleaning Especially essential in automated manufacturing
