Clean•Tec 160, Ø 3/4" Shaft, Chip Fan

Product Code - 34160

Add To Inquiry List

Clean•Tec 160, Ø 3/4" Shaft, Chip Fan

Product Code - 34160

Add To Inquiry List

Catalogues

1. 2025 Lang Catalogue
2. Automation
3. Lang MakroGrip Ultra
4. Lang Workholding
5. 2017 LANG Workholding
6. Zero-Point Clamping
7. 2025 Lang Speciality Products
8. LANG Aero & RoboTrex Compact.

Key data at a glance

The smallest version of the Clean•Tec chip fan with a shaft diameter of 19.05 mm (3/4 inch), is particularly suitable for targeted cleaning tasks such as blowing out pocket holes and tends to be used in smaller machines. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling.

Further Information

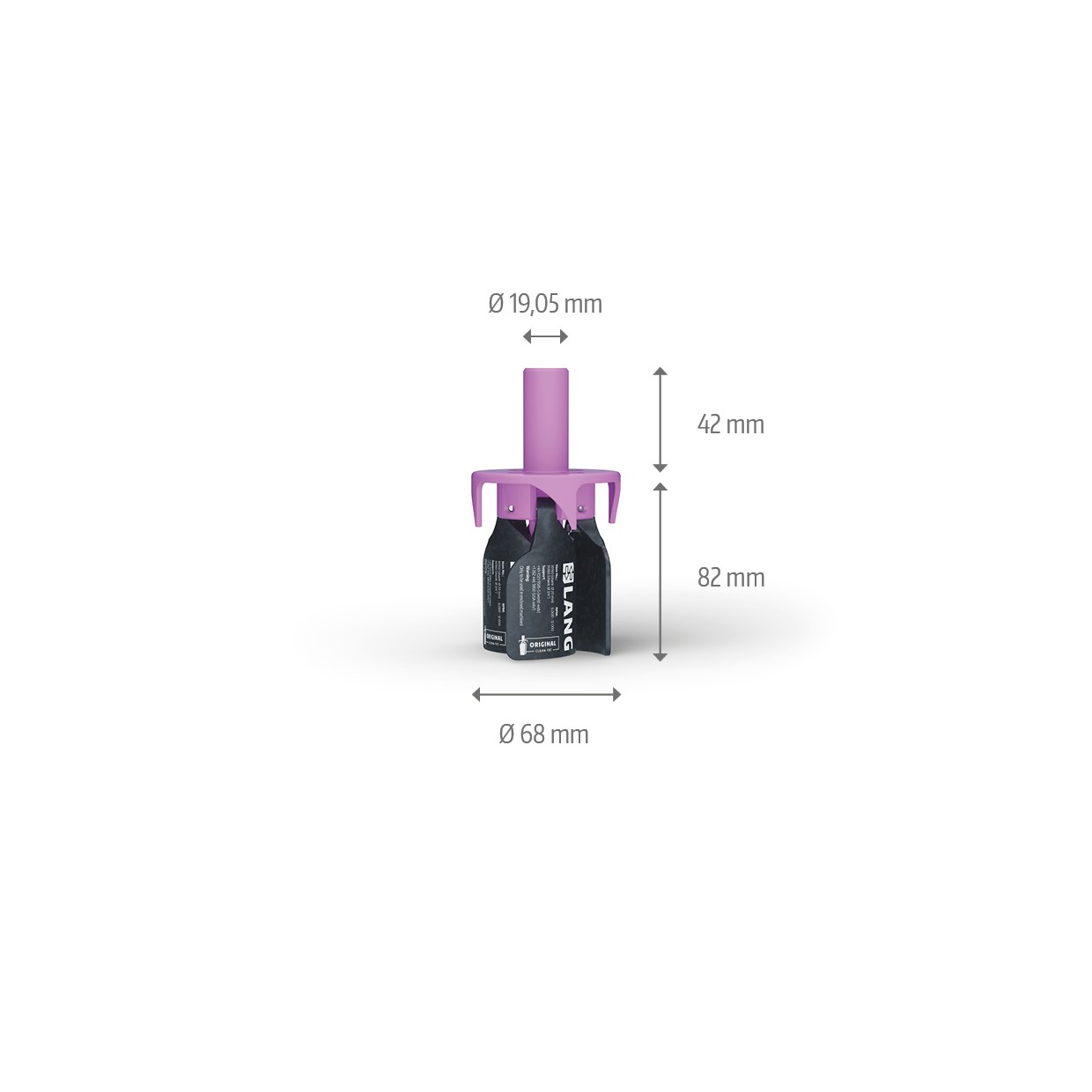

SOCKET DIAMETER

0.75" (19.05 mm)

SOCKET LENGTH

1.65" (42 mm)

WING LENGTH

3.23" (82 mm)

TOTAL LENGTH

14.88" (24 mm)

DIAMETER WITH CLOSED WINGS

2.68" (68 mm)

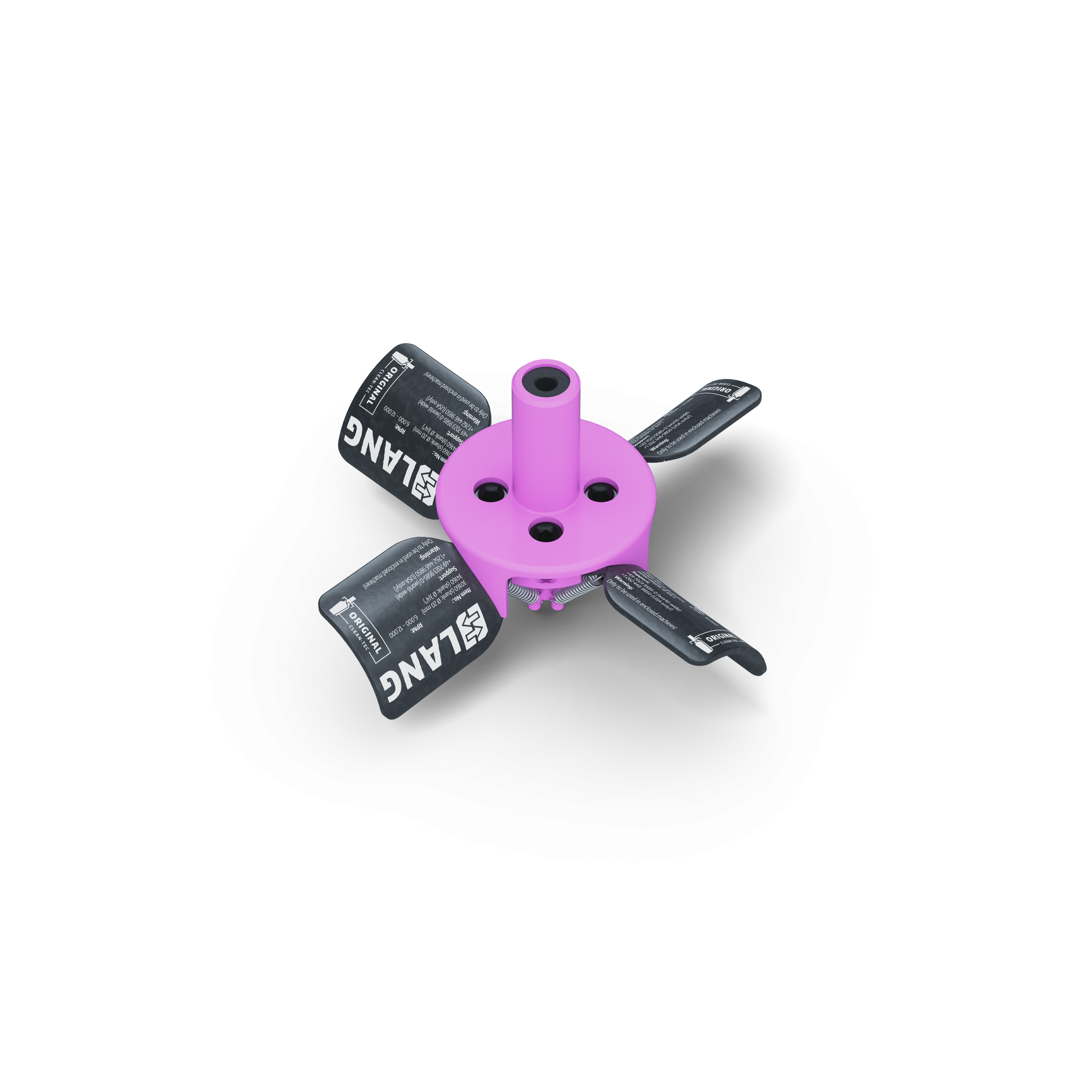

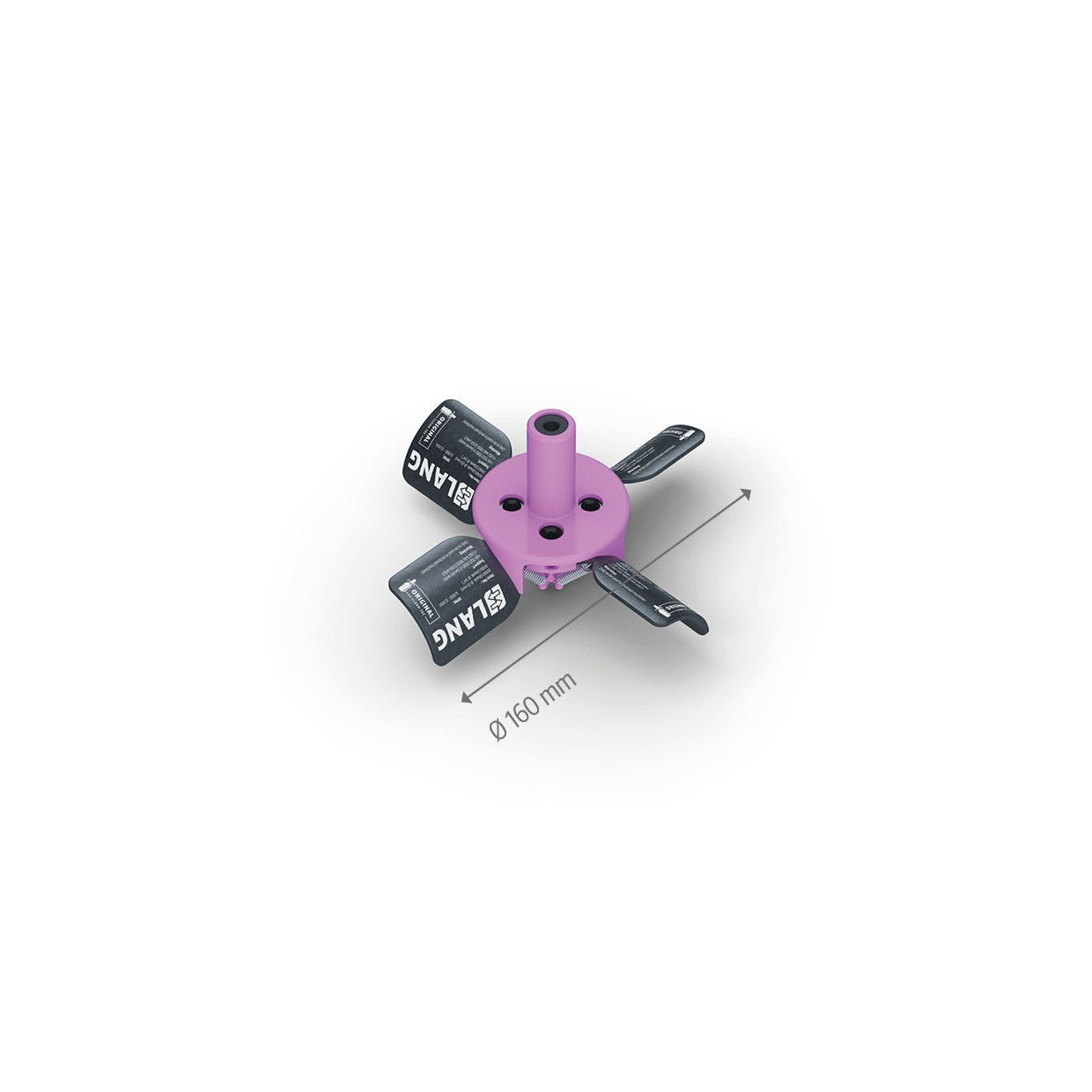

DIAMETER WITH OPEN WINGS

6.3" (160 mm)

RPM RANGE

6000 - 12000 R/min

APPLICATION

targeted

PACKAGING UNIT

1 Piece

WEIGHT

0.17 kg (0.37 lbs)

MATERIAL

Plastic

Model Type

Imperial Model

Notice:

Scope of delivery:

Clean•Tec Chip Fan

The Clean•Tec, „The Original“ chip fan, cleans the machine interior after the machining process, removing chips and coolant without the operator having to open the machine tool door. As a final step in the machining process the chip fan is called up via the NC program and selected from the tool magazine.

Cleanliness No swarf and coolant outside the machine tool

Energy Savings Expensive compressed air not needed

Unmanned Cleaning Especially essential in automated manufacturing
